ADVANCE Optanium Electronic Fluorescent Ballast, Universal 120V-277V Input, 1 Lamp F17T8 F25T8 F32T8 F32T8/ES, F40T8, Instant Start Ballast

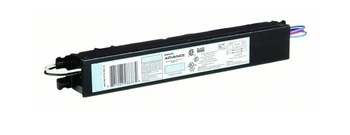

Advance Optanium IOPA-1P32-N Electronic Fluorescent Ballast Guide
Quick Answer: The Advance Optanium IOPA-1P32-N (Signify / Philips Advance) is a premium high-efficiency 1-lamp electronic fluorescent ballast engineered to operate a single F32T8 linear lamp (as well as 25W, 28W, and 30W energy-saving T8 lamps) across universal 120–277V line voltage. Featuring Instant Start ignition, IntelliVolt auto-voltage sensing, Normal Ballast Factor (0.87–0.88), and a compact N-Can housing, it provides maximum energy efficiency in single-lamp linear architectural and commercial luminaires.
Advance Optanium IOPA-1P32-N Overview & Key Features
The Advance Optanium IOPA-1P32-N commercial ballast offers maximum electrical efficiency and reliable performance across commercial troffers, cove lighting, and linear strip fixtures:
- IOPA Premium Efficiency Rating: Delivers optimized input power reduction, exceeding standard CEE ballast efficiency requirements for commercial rebate eligibility.
- Instant Start Technology: Provides fast, energy-efficient lamp ignition without cathode preheating, maximizing system efficacy in long-burn commercial applications.
- IntelliVolt Universal Voltage: Automatically senses and operates on line voltages from 120V to 277V AC at 50/60 Hz.
- N-Can Low-Profile Enclosure: Space-saving metal housing designed to fit easily inside narrow commercial fixture wireways and architectural channels.
- High Power Factor & Low THD: High power factor (>0.98) with Total Harmonic Distortion under 10% for superior electrical quality.
Advance Optanium IOPA-1P32-N Technical Specifications
Core performance specifications and electrical ratings for the Advance Optanium IOPA-1P32-N ballast:
| Specification Parameter | Rating / Value | Details & Performance Standards |
|---|---|---|
| Input Voltage | 120 – 277 VAC | IntelliVolt auto-sensing supply, 50/60 Hz |
| Lamp Compatibility | F32T8 (32W), F28T8 (28W), F25T8 (25W), F30T8 | Standard and energy-saving linear T8 lamps |
| Number of Lamps | 1 Lamp | Operates 1 linear T8 fluorescent lamp |
| Starting Method | Instant Start | Fast energy-efficient ignition |
| Ballast Factor | 0.87 – 0.88 (Normal Ballast Factor) | Standard commercial light output level |
| Power Factor / THD | > 0.98 PF / < 10% THD | Commercial grade high power factor performance |
| Sound Rating | Class A | Quiet electronic operation for office environments |
| Compliance & Certifications | UL Listed, CSA Certified | RoHS compliant, Class P thermally protected |
Installation & Wiring Guidelines
- Power Disconnect: Always turn off main AC power at the circuit breaker prior to servicing or replacing the ballast.
- Wiring Schematic: Connect input line leads (Black/Line, White/Neutral) and output leads directly to the lamp sockets according to the label diagram.
- Enclosure Grounding: Securely mount the metal N-Can housing to the grounded fixture housing for safe electrical grounding and heat dissipation.
Frequently Asked Questions
What does "IOPA-1P32-N" stand for in Advance's nomenclature?
"IOP" indicates Optanium series, "A" designates the upgraded high-efficiency/rebate-tier circuit, "1" represents 1-lamp capacity, "P" stands for Premium efficiency, "32" indicates 32W T8 lamps, and "N" denotes the N-Can enclosure size.
What is the difference between IOP-1P32-N and IOPA-1P32-N?
The IOPA series is Advance's upgraded Optanium design offering even lower input wattage consumption and higher Ballast Efficacy Factor (BEF) compared to standard IOP series ballasts.
Can this ballast be bypassed for Type B LED T8 tubes?
Yes. When retrofitting linear fixtures to Type B direct-wire LED T8 tubes, the ballast is completely disconnected and removed from the electrical circuit.
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No: |
BSF-IOPA-1P32-N |
Mfr Part #: |
IOPA1P32N |
Manufacturer Material Code: |
913701216101, 913701216102 |
Brand: |
Advance Optanium |
Fixture Type: |
Electronic Fluorescent |
Input Voltage: |
120-277V ( Universal) |
Lamp: |
(1) F17T8, (1) F25T8, (1) F32T8, (1) F32T8/ES |
Dimensions: |
9.50" L x 1.3" W x 1.0" H |
Product Data Sheet: |
See PDF Link Provided |
Features: |
Instant Start |
Alternative Keywords: |
No |
Number Of Lamps: |
1 |
Operates: |
F17T8, F25T8, F32T8, F32T8ES |
Warranty: |
Manufacturer's |
Case Size: |
10 |
