Description

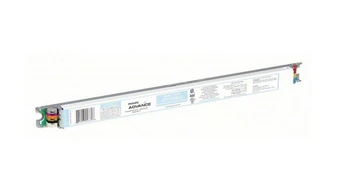

ADVANCE IZT-2S54-D Mark7 Electronic Dimming Ballast, Universal 120-277V Input, 2 x F54T5HO, FT55W/2G11 Lamps, Program Start, Analog 0-10V Dimming
Advance Mark 7 IZT-2S54-D Electronic Dimming Ballast (0-10V)
The Advance Mark 7 IZT-2S54-D by Signify is a premium 0-10V analog electronic dimming ballast engineered to operate two F54T5/HO lamps. Featuring a programmed start and a series lamp connection, this ballast delivers smooth, continuous dimming from 100% down to 1% relative light output. Its robust performance makes it an ideal solution for architectural, commercial, and retail lighting applications that demand precise light level control and energy efficiency.
Core Specifications & Features
- Supported Lamps: Primarily designed for 2 × F54T5/HO lamps. Also fully compatible with F54T5/HO/49W, FC12T5/HO, and FT55W/2G11 lamps.
- Input Voltage: Universal 120-277V, 50/60 Hz.
- Dimming Protocol: Mark 7 0–10V DC analog control providing a 100% to 1% dimming range for T5/HO lamps.
- Starting Method: Programmed Start circuitry maximizes lamp life in frequently switched or dimmed environments.
- Dimensions: 16.70" Length × 1.18" Width × 1.00" Height (Mounting center: 16.34").
- Safety & Compliance: UL Listed (Class P, Type 1 Outdoor), CSA Certified, and RoHS Compliant. Features a Class A sound rating and integrated Lamp End-Of-Life (EOL) protection.
Product Specifications
| Key Feature / Specification | Details |
|---|---|
| Manufacturer & Model | ADVANCE by Signify, Model IZT2S54D / IZT-2S54-D |
| Ballast Type & Control | Electronic Dimming, Mark 7 0–10V DC control |
| Input Voltage & Frequency | 120–277V, 50/60 Hz |
| Starting Method & Connection | Programmed Start, Series lamp connection |
| Supported Lamp Types | 2 × F54T5/HO (Primary), F54T5/HO/49W, FC12T5/HO, FT55W/2G11 |
| Dimming Range | 100% to 1% relative light output for T5/HO lamps |
| Electrical Performance | Power Factor > 0.98, Max THD < 10%, Lamp Current Crest Factor ≤ 1.7 |
| Minimum Starting Temp | 50°F / 10°C |
| Enclosure Dimensions | 16.70" L × 1.18" W × 1.00" H (Mounting: 16.34") |
| Certifications & Features | UL Listed (Class P, Type 1 Outdoor), CSA Certified, RoHS Compliant, Lamp EOL Protection, Sound Rating Class A |
| Warranty | 5-year warranty for operation at max case temp of 70°C |
Frequently Asked Questions
- What is the dimming range of the IZT-2S54-D?
- When paired with a compatible 0-10V DC dimmer, this ballast provides a continuous, flicker-free dimming range from 100% all the way down to 1% specifically for T5/HO lamps.
- Does this ballast have End-of-Life (EOL) protection?
- Yes, it features integrated Lamp EOL protection. This safely shuts down the circuit when a lamp reaches the end of its usable life, protecting the fixture and sockets from overheating.
- Is this ballast suitable for outdoor applications?
- Yes, the IZT-2S54-D is UL Listed as Type 1 Outdoor, making it suitable for outdoor environments as long as it is housed in a proper, weather-resistant fixture.
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No: |
BSF-ADV-IZT2S54D |
Mfr Part #: |
IZT2S54D |
Manufacturer Material Code: |
913701254102 |
Brand: |
Advance Mark 7 |
Fixture Type: |
Electronic Fluorescent Dimming |
Input Voltage: |
120-277V (Universal) |
Lamp: |
(2) F54T5HO, (2) F54T5HO/49W, (2) FC12T5HO, (2) FT55W/2G11 |
Dimensions: |
16.7"L x 1.00"H x 1.18"W , MC 16.34" |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Number Of Lamps: |
2 |
Operates: |
F54T5HO, FT55W/2G11 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
