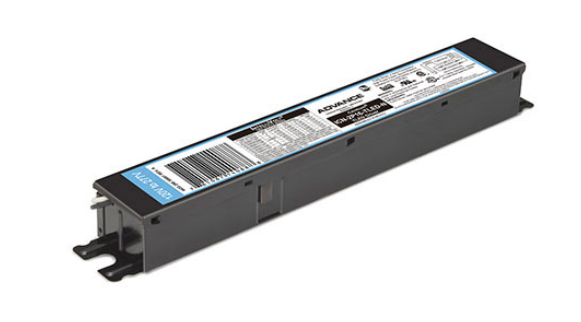

IZT-4P16-TLED-SC Advance Mark 7 Electronic Dimming TLED Driver - 16W 0-10V

What is the Philips Advance IZT-4P16-TLED-SC Type C TLED Driver for InstantFit Lamps?

The IZT-4P16-TLED-SC is a Centium series electronic TLED driver manufactured by Philips Advance (Signify). It is strictly engineered to operate three or four InstantFit T8 LED tubes (up to 16W per lamp), offering critical advantages including Mark 7 0-10V analog dimming, IntelliVolt universal voltage (120-277V), and standard SC-can housing. It is the optimal choice for commercial "Type C" LED retrofits in offices, hospitals, and schools requiring maximum efficiency and precise dimming control without relying on older fluorescent ballasts.

Core Features and Technical Advantages

Selecting a dedicated Centium TLED driver ensures maximum energy savings, deep dimming capabilities, and extended lifespans for your linear LED tubes. The primary features of the IZT-4P16-TLED-SC include:

• 0-10V Analog Dimming: Integrates seamlessly with standard 0-10V architectural dimmers, daylight harvesting sensors, and building management systems to dim compatible InstantFit LED tubes smoothly down to 5% light output.
• Dedicated Constant-Current Power: Unlike "plug-and-play" LEDs that rely on aging, inefficient fluorescent ballasts, this dedicated driver provides clean, optimized DC power specifically for LED diodes, eliminating compatibility issues and flicker.
• IntelliVolt Technology: Automatically detects and adapts to any line voltage between 120V and 277V (50/60Hz), simplifying retrofits and standardizing maintenance inventory across large facilities.

How to Verify Compatibility for Your Fixture

When evaluating the IZT-4P16-TLED-SC for a commercial lighting upgrade, assess the following criteria to ensure complete compatibility:

1. Lamp Type (Type C TLEDs): Confirm you are installing compatible Philips InstantFit T8 LED tubes (or approved equivalents). This driver will not operate traditional fluorescent tubes or standard 120V "ballast bypass" (Type B) LED tubes.
2. Lamp Quantity (3 or 4 Only): This specific driver is calibrated to power exactly three or four LED tubes. If your fixture requires only one or two lamps, you must use the 2-lamp variant (IZT-2P16-TLED-SC).
3. Physical Dimensions: Verify that the standard linear SC-can metal housing (9.5" L x 1.7" W x 1.18" H) securely fits within your fixture's internal ballast channel.

Frequently Asked Questions

What is a "Type C" LED system?

A Type C LED system pairs linear LED tubes with a separate, dedicated LED driver (like the IZT-4P16-TLED-SC). This is considered the safest and most efficient retrofit method because it removes the old fluorescent ballast and uses low-voltage DC power at the sockets, allowing for advanced 0-10V dimming and extending the system's lifespan.

How do I wire this for 3 lamps instead of 4?

When operating only three lamps, installers must carefully follow the wiring diagram on the driver label. You will need to individually cap and insulate the unused blue or red lead wire (rated for 600V) to ensure safe, stable operation.

Will this driver work if I don't hook up a dimmer?

Yes. If you install the IZT-4P16-TLED-SC but leave the 0-10V control wires (violet and gray) unconnected and capped off, the driver will simply default to operating the LED lamps at 100% full light output.
