Description

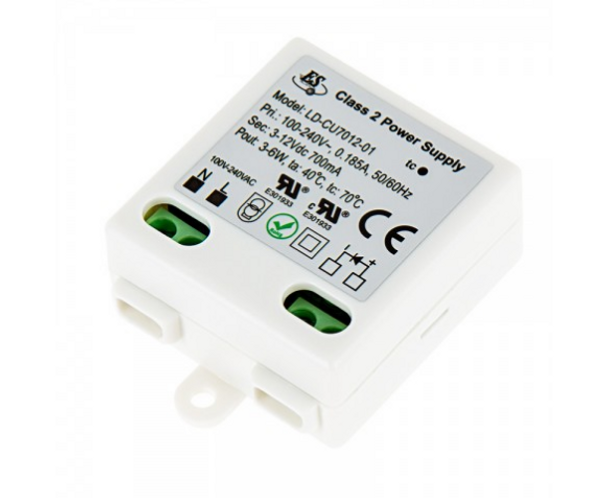

LUMINUX LED Driver, Constant Current, non-Dimming, 3-6W Power Output,100-240V Input, 700mA 3-12Vdc Output, Screw Terminals
LUMINUX LED Drivers 6W 700mA Constant Current
Every LED array or fixture requires a driver to provide efficient power. At BallastShop we offer a wide array drivers to meet your power output and dimming requirements of virtually any LED in the marketplace.
- Total Output: 3-6 Watts, 700mA, 3-12Vdc
- Input Voltage: 100-240 VAC
- Class 2
- Screw Down Terminals
- Operating temperature range: -10°C to 40°C
Additional Information
Our Part No: |
BSF-LUM-LD-CU7012-01 |
Weight: |
0.44 |
Mfr Part #: |
LD-CU7012-01 |
Input Voltage: |
100-240 |
Warranty: |
Manufacturers |
Dimensions: |
2.52" L x 1.59" W x 1.59" H |
Product Data Sheet: |
No |
Features: |
No |
Fixture Type: |
LED |
Case Size: |
10 |
Alternative Keywords: |
No |
Driver Type: |
Constant-Current |
Max Output Power: |
6W |
UL Class: |
Class 2 |
Max Output Voltage: |
12V |
Max Output Current: |
700mA |
Dimming: |
Non-Dimming |
Location Rating: |
Wet/Dry |
