Description
NaturaLED Field-Selectable LED Lamp, 24W/3300L 32W/4200L 40W/5500L lumens, 120-277V Universal Input, Type B Ballast Bypass, 8' nominal length, Bi-Pin base, 2700/3000/3500/4000/5000K Color Temperature, Double-ended wiring not compatible with shunted socket

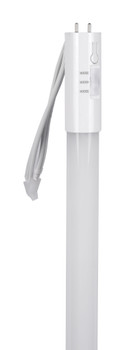

NaturaLED T8 LED Replacement Lamp
- 120-277 Volts
- Selectable 24W/3300L, 32W/4200L, 40W/5500L
- Type B Ballast Bypass
- Single, R17d base
- Nominal Footage: 8'
- Selectable 3500K, 4000K or 5000K Color Temperature
Spec Sheets
Additional Information
Our Part No: |
BS16-4635 |
Mfr Part #: |
LED40T8SW/96FR55/8CCT5 |
Manufacturer Material Code: |
4635 |
Lamp: |
T8/T12 Replacement |
Bulb Shape: |
Linear |
Wattage: |
24W, 32W, 40W |
Lumens: |
3300, 4200, 5500 |
Color Temp: |
2700K/3000K/3500K/4000K/5000K |
Lamp Footage: |
8' |
Dimming: |
No |
Finish: |
Frosted |
Dimensions: |
L: 96", D: 1" |
Voltage: |
120-277V (Universal) |
Beam Angle: |
325° |
CRI: |
>80 |
Base Type: |
Single, R17d |
Bulb Life: |
50000 Hours |
Feature: |
Type B Ballast Bypass |
Equivalent: |
110W |
Case Size: |
10 |
Warranty: |
Manufacturer's |
Step: |
10 |
