Description
TCP Full Cutoff LED Wall Pack, Field Selectable CCT and Lumens/Wattage, 2600/3900/5200 Lumens (20/30/40W), Universal 120-277V Input, 3000K/4000K/5000K Color Temperature, Analog 0-10V Dimmable

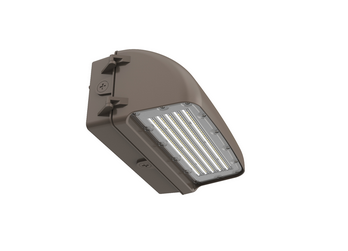

TCP Select Series 2600/3900/5200 Lumen Full Cut-off LED Wall Pack
Up to 9 CCT and wattage combinations. Internal switches maintain wet location rating.
Features
- Full cut off optics provide Dark Sky conformance
- Die-cast aluminum housing
- Impact-resistant polycarbonate lens. Low glare optics provide excellent visibility.
- Durable dark bronze powdercoat
- Same footprint as existing HID wall packs
- Operating Temperature: 40°F to 104°F
- IP65 Wet location rated
- UL and cUL listed, RoHS Compliant, DLC v5.1 Standard
- Four knockouts available for wiring
- Bug Rating: B2-U0-G1
- 50,000 Rated Life
Spec SheetsAdditional Information
Our Part No: |
TCP-SFWUZDSW4CCT |
Mfr Part #: |
SFWUZDSW4CCT |
Brand: |
TCP |
Lamp: |
LED Wall Pack |
Wattage: |
20W/30W/40W |
Lumens: |
2600, 3900, 5200 |
Color Temp: |
3000K/4000K/5000K |
Voltage: |
120-277V (Universal) |
Dimming: |
Yes |
Bulb Life: |
50000 Hours |
CRI: |
>70 |
Warranty: |
Manufacturer's |
Finish: |
Bronze |
Dimensions: |
12.85" L x 5.72" W x 7.52" H |
Case Size: |
1 |
