Description
eldoLED LINEARdrive 200D-D2Z2D3 DC-powered Programmable Constant Voltage LED Driver, 224W Max Power Output, 12/24/28VDC Input, 2 Output Channels, Low Voltage 12-28Vdc Output, Output Current 8000mA Max per LED, 2 Output Channels with with 2 Control Channels, DALI-2 DT6 control protocol, Dimming 0.02-100%, Long Plastic Case

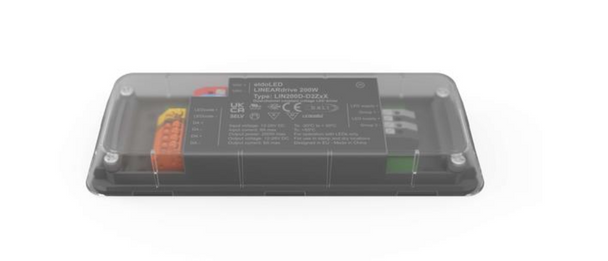

eldoLED LINEARdrive LIN200D-D2Z2D3 200W 12-28VDC DALI DT6 LED Driver - 2-channel/2-control
LINEARdrive DC, 200W, 8A, DALI DT6, 12-28VDC Input, 2 control channel, 2 constant voltage outputs, plastic long case
The LINEARdrive DC-powered LED Drivers are designed for constant voltage LED tape lighting
Features
- Nominal input voltage DC 12/24/28V
- Maximum input current 8A
- LED output load 8A maximum for 1 or 2 channels
- Output power 224W max
- LED outputs: 2 LED output voltage 12 – 28V
- Control channels: 2
- Control protocol : DALI Device Type 6 LEDcode2 Dimming range 100% – 0.02% (Deep Dim)
- Dimming curve options : LOG Logarithmic (default), LIN Linear
Common Programming Options
Default: *289VJL LIN200D-D2Z2D3 LOG 2XDALI 105NTC OFFICIAL DALI-2 SETTING
Spec Sheets
Additional Information
Our Part No.: |
BS46-LIN200D-D2Z2D3 |
Manufacturer Part No.: |
LIN200D-D2Z2D3 |
Manufacterer Material Code: |
*289VJL |
Brand: |
Acuity eldoLED LINEARdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage-Programmable |
Input Voltage: |
12/24/28VDC |
Max Output Power: |
200W, 224W |
Max Output Current: |
8000mA |
Max Output Voltage: |
28V |
Dimming: |
DALI-2 DT8 |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6.02" L x 1.97" W x 0.91" H |
UL Class: |
Class 2 |
Features: |
2-channel outputs with 2-controls |
Warranty: |
Manufacturer's |
Case Size: |
12 |
