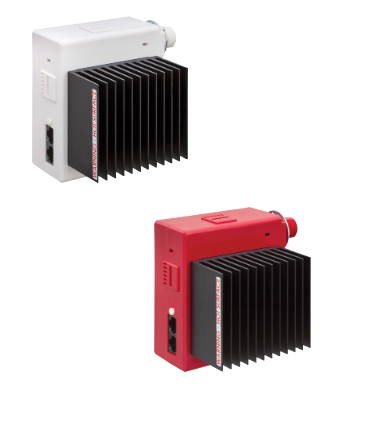

nPP PCD Acuity nLight Phase Adaptive Dimming Power Pack - UL 924 (ER) Optional

Acuity nLight nPP PCD Phase Control Dimming (PCD) Power Pack, Universal 120-277V Input, Switch dimming loads up to 16A, two RJ-45 connectors to step down to 24Vdc, 1/2" Knock-out Mounting, UL 924 Option (ER)

Acuity Controls nLight nPP PCD Emergency Relay Pack

The nLight nPP PCD Phase Adaptive Dimming Power Pack is designed to control large phase dimmed loads, controlling forward-phase dimming and reverse-phase-dimming loads as large as 16A at 120VAC and 277VAC. This power pack also provides nLight system bus power - up to 40mA from each of its two RJ-45 ports - by transforming Class 1 line voltage (120-277 VAC) to Class 2 low voltage (24 VDC). This power is utilized by other nLight devices within the power pack’s local control zone.

Features

• Provides phase dimming control for 2-wire dimming fluorescent, electronic low voltage, incandescent, and magnetic low voltage loads
• Controls loads as small as 0A and as high as 16A at 120VAC and 277VAC
• Supplies 40mA of Bus Power per each RJ-45 port
• Intelligently selects appropriate dimming method
• Push-Button Programmable
• UL 924 listed option for built in, simplified lighting control on emergency lighting circuits
• Size: (not incl. 1/2” chase nipple) 3.38” H x 2.53” W x 1.83” D
• Mounting 1/2” Knockout (7/8" hole)
• Extended Chase Nipple
• Plenum Rated (UL 2043)
• Color White or Red (ER)
• Includes fuse integrated to relay wire lead for protection from load faults
