Description
Acuity nLight nPP16 D EFP SA Power and Bypass Relay, External Fault Protection (EFP), Analog Dimming via Chase-nipple, Input 120/277V, Manual-On (Switch Ch. 1), 40mA each via 2 RJ-45 ports

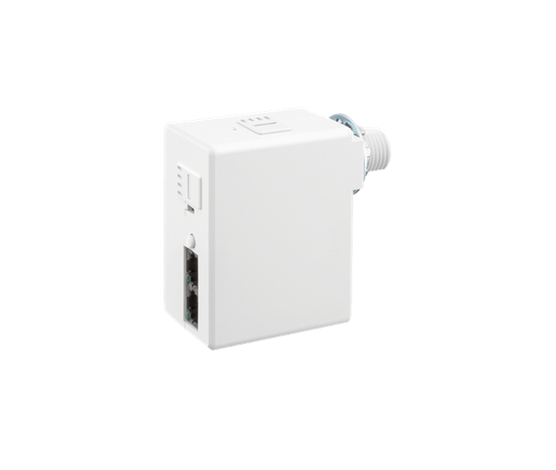

Acuity Controls nLight nPP16 D EFP SA Bypass Relay / Power Pack - Dimming Chase Nipple Manual-on
nPP16 EFP (External Fault Protection) series are capable of switching loads via an internal latching relay and system bus power - up to 40mA from each of its two RJ-45 ports
Features
- Communicates with nLight Network
- Self-Contained Relay Switches Line Voltage Load
- Supplies 15VDC, 40mA of Bus Power via 2 RJ-45 ports (80mA total)
- Size: (not incl. 1/2” chase nipple) 3.38” H x 2.53” W x 1.83” D
- Mounting 1/2” Knockout (7/8" hole)
- Push-Button Programmable
- Meets NEMA410 ratings for LED/electronic ballast inrush
- Extended Chase Nipple
- Plenum Rated (UL 2043)
- Color White
- Includes fuse integrated to relay wire lead for protection from load faults
Spec SheetsAdditional Information
Our Part No: |
BSF-NL-265LYN |
Mfr Part #: |
NPP16 D EFP SA |
Manufacturer Material Code: |
*265LYN |
Brand: |
Acuity nLight |
Fixture Type: |
Fluorescent, LED |
Lighting Load Max: |
40mA each port |
Dimming: |
Dimming via Chase Nipple |
Mode: |
Manual On (Switch Channel 1) |
Input Voltage: |
120/277V |
Dimensions: |
3.38” H x 2.53” W x 1.83” D with a 0.50” threaded nipple |
Features: |
External Fault Protection (EFP) |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
ea |
Alternative Keywords: |
nPP16DEFPSA |
