Description
OPTOTRONIC Constant Current LED Driver, 35W Max Power Output, Universal 120-277V Input, Model Options Fixed Output Current 500/550/600/650/675/700mA, 20-50VDC Output, Analog 0-10V Dimming 10%-100%

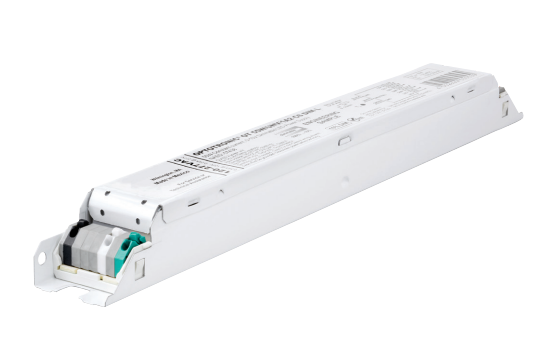

Optotronic 35W Fixed Constant Current LED Driver
- AC to DC Converter
- Max Power Output 35W
- Input Voltage: 120-277 VAC
- Output Voltage: 20-50V DC
- Output Current Options: 500mA 550mA 600mA 650mA 675mA 700mA
- Class 2
- Dry and Damp Rated
- Dimmable 0-10V Analog 10%-100%
Model Options
Spec SheetsAdditional Information
Our Part No.: |
BSF-OPT-OT35W-VK |
Manufacturer Part No.: |
OT 35W/UNV/0A7 DIM L |
Manufacturer Material Code: |
*280WEA, *280WE6, *280NR2, *280NR5, *280WF7, *280WEG |
Brand: |
Acuity eldoLED Optotronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
35W |
Max Output Current: |
500mA, 550mA, 600mA, 650mA, 675mA, 700mA |
Output Current Factory Setting: |
500mA, 550mA, 600mA, 650mA, 675mA, 700mA |
Max Output Voltage: |
50V |
Output Voltage Range: |
20-50V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
11.00" L x 1.15" W x 1.00" H Mounting Center 10.63" |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
