Description
OPTOTRONIC Constant Current Tunable White 2-Channel LED Driver, 50W Max Output Power (per channel and combined), Input Voltage 120-277V, Fixed Programmable Output Current 400-1400mA (factory default 400mA/channel), Output Voltage 20-48VDC, Analog 0-10V DALI Dimming

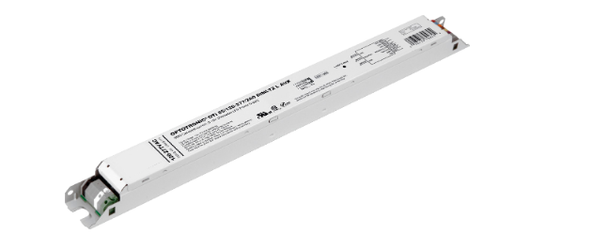

Optotronic Tunable White Programmable Constant Current LED Power Supply - 50W 400mA DALI-dimming
Features
- Tunable White 2- channel AC DC Converter
- Output Power: 50W per channel and combined
- Input Voltage: 120-277 VAC
- Output Voltage: 20-48 VDC
- Fixed Output Current: 400-1400mA programmable, FACTORY Default 400mA per channel
- Dimming:
- 0-10V Analog 1%-100%
- Linear or Logarithmic (programmable)
- Default dimming mode is DALI (DEXAL power off)
- NAED 58287
Note: Osram Optotronic brand in now part of the Acuity eldoLED Optotronic family.
Spec SheetsAdditional Information
Our Part No.: |
BSF-OPT-58287 |
Manufacturer Part No.: |
OTi 50W/120-277/1A4/2CH TW L |
Manufacturer Material Code: |
58287/*2743Y6 |
Brand: |
Acuity eldoLED Optotronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
50W |
Max Output Current: |
1400mA |
Output Current Factory Setting: |
400mA per channel |
Output Current Programmable Range: |
400-1400mA |
Max Output Voltage: |
48V |
Output Voltage Range: |
20-48V |
Dimming: |
Analog (0-10V), DALI |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
16.73" L x 1.15" W x 1.00" H Mounting Center 16.43" |
UL Class: |
Class 2 |
Features: |
2-Channels, Tunable White |
Alternative Keywords: |
OTi50W/120-277/1A4/2CH TW L |
Warranty: |
Manufacturer's |
Case Size: |
10 |
