GREEN CREATIVE CCT Color Select Hybrid PLL LED Lamp Guide
Quick Answer: The GREEN CREATIVE Power and CCT Select Hybrid PLL LED Lamps (PLEDGE Series) are 2G11 4-pin LED replacement lamps designed for traditional 18W, 24W, 36W, 40W, 50W/55W CFL PLL lamps. Featuring field-selectable 5-CCT technology (3000K, 3500K, 4000K, 5000K, 6500K) and SelectDrive lumen adjustment model (22W/19W), these UL Type A+B Hybrid lamps run off existing electronic ballasts or direct 120–277V line voltage.
GREEN CREATIVE Hybrid Select PLL Overview & Key Features
The GREEN CREATIVE Selectable Hybrid PLL LED lamps simplify retrofitting 2x2 troffers, architectural baskets, and wall sconces by combining dual-mode installation with on-lamp adjustability:
- UL Type A+B Hybrid Flexibility: DIRect installation mode operates plug-and-play on instant and program-start electronic ballasts; BYPass installation mode operates directly on 120–277V AC line voltage after removing the ballast.
- SelectKelvin Field-Selectable Color CCT: On-lamp slide switch allows quick selection across 5 color temperatures: 3000K (Warm White), 3500K (Neutral White), 4000K (Cool White), 5000K (Daylight), and 6500K (Cool Daylight).
- SelectDrive Power / Lumen Output: Available on the 22W model (Model 38726), enabling two-level selectable output (22W (3350 lm) / 19W (2,800 lm).
- Shatter-Resistant Construction: Built with PET-coated shatter-resistant glass delivering high efficiency up to 152 LPW and a 140° beam angle.
- Durable & Certified: Rated for totally enclosed fixtures and damp locations; NSF certified for Food Zone (Non-Contact), Splash, and Non-Food Zones; 50,000-hour rated lifetime (L70).
GREEN CREATIVE Hybrid Select PLL Product Line Specifications
Full performance parameters and ordering specifications from the official GREEN CREATIVE spec sheet:

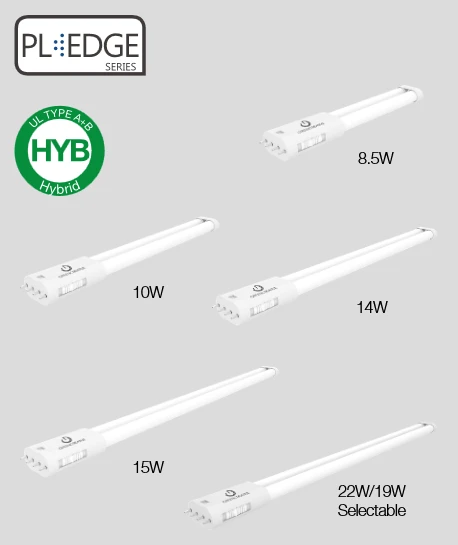

| Item # | Model Designation | CFL Equiv. | Wattage (W) | Lumens (3500K) | Length |
|---|---|---|---|---|---|
| 38722 | 8.5PLL/8CTS/HYB/C | 18W | 8.5W | 1,000 lm | 8-7/8 in |
| 38723 | 10PLL/8CCTS/HYB/C | 24W | 10W | 1,250 lm | 12-5/8 in |
| 38724 | 14PLL/8CCTS/HYB/C | 36W | 14W | 2,000 lm | 16-5/16 in |
| 38725 | 15PLL/8CCTS/HYB/C | 40W | 15W | 2,200 lm | 22-1/4 in |
| 38726 | 22PLL/8CCTS/HYB/SD/C | 50/55W | 22W / 19W | 3,350 lm / 2,800 lm | 22-1/16 in |
Installation & Wiring Options
- DIRect Installation (Type A - Plug & Play): Turn off fixture power, adjust the CCT/Power select switch to the desired position before powering on, remove the old CFL lamp, and insert the LED PLL lamp into the open 2G11 socket connected to a compatible electronic ballast.
- BYPass Installation (Type B - Direct Line Voltage): Disconnect power, cut all wires connected to the electronic ballast, remove the ballast, and wire 120–277V line voltage directly to the socket leads following the fixture wiring diagram.
- Supplied Accessory: Each lamp includes one adhesive-backed support clip (Product # 98015 / PLLCLIP) for quick installation and extra physical stabilization inside the luminaire.
Frequently Asked Questions
What color temperatures can be selected on GREEN CREATIVE Select Hybrid PLL lamps?
The SelectKelvin switch allows selection between 5 color temperatures on a single lamp: 3000K, 3500K, 4000K, 5000K, and 6500K.
What does "Hybrid Type A+B" mean for these PLL lamps?
Hybrid Type A+B means the lamp operates as Type A (plug-and-play off a compatible electronic ballast) or as Type B (directly off 120–277V line voltage after bypassing the ballast).
Can these LED PLL lamps be installed in enclosed fixtures?
Yes. All GREEN CREATIVE Power and CCT Select Hybrid PLL lamps are UL Listed/Classified and rated for use in totally enclosed fixtures and damp locations.
Spec Sheets
Download the official manufacturer documentation and specifications:
Green Creative Power & CCT Select Hybrid PLL LED Lamps
Green Creative Power and CCT Select PLL Hybrid Lamps UL Type A+B
Additional Information
Our Part No: |
BSF-GC-387XX |
Manufacturer Part No.: |
Based on Model Selected |
Manufacturer Material Code: |
38722, 38723, 38724, 38725, 38726 |
Brand: |
Green Creative |
Product Class: |
PLL Series |
Bulb Shape: |
PLL |
Base Type: |
2G11 |
Wattage: |
8.5W, 10W, 14W, 15W, 19W/22W |
Equivalent: |
18W, 24W, 36W, 40W, 50W/55W |
Lumens: |
1000, 1250, 2000, 2200, 2800/3350 |
Color Temp: |
3000K, 3500K, 4000K, 5000K, 6500K |
Dimming: |
No |
Features: |
Field Select CCT and Power |
CRI: |
82+ |
Dimensions: |
See PDF Link Provided |
Product Data Sheet: |
See PDF Link Provided |
Finish: |
Frosted |
Location Rating: |
Damp, Enclosed |
Rated Life: |
50000 Hours |
Warranty: |
Manufacturer's |
Case Size: |
6 |
