Description

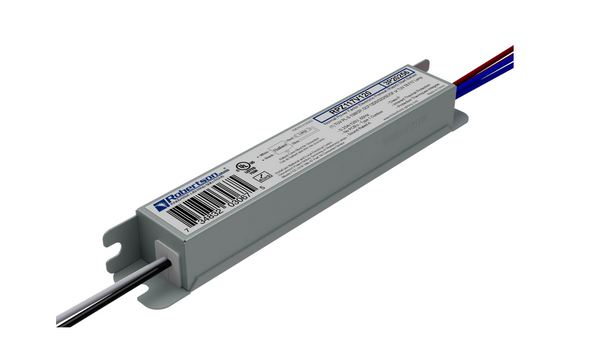

ROBERTSON Electronic UV Germicidal Ballast, 120V Input, Nominal Lamp Current Output 280mA, One 13W-17W 2-pin or 4-pin Lamps, Rapid Start
Robertson Electronic UV Germicidal Ballast - Single-lamp 120V 13W-17W
Performance and Safety
- Preheat Rapid Start
- UL/935 Listed (Class P, Type 1 Outdoor)
- CSA/C22.2 certified
- Series operation
- Encased & Potted
- Minimum Starting Temperature: 23ºF/-5ºC
- Meets FCC Part 18 (Class B) for EMI and RFI Consumer Limits
Lamp Compatibility
21259 Osram HNS 15W G13 - 15W; 330 mA; Preheat Start Lamp 59156 Osram HNS S 13 W GX23 - 13W; 280 mA; Preheat Start Lamp G15T8/OF - 15W; 330 mA; Preheat Start Lamp GCF13DS/GX23/OF - 13W; 280 mA; Preheat Start Lamp HNS 15W G13 - 15W; 330 mA; Preheat Start Lamp HNS S 13 W GX23 - 13W; 280 mA; Preheat Start Lamp TUV 15W SLV - 16W; 335 mA; Preheat Start Lamp TUV PL-S 13W/2P - 13W; 290 mA; Instant Start Lamp TUV T8 F17 1SL - 17W; 236 mA; Preheat Start Lamp
Spec Sheets
Additional Information
Our Part No: |
RWW-RPZ117V120 |
Mfr Part #: |
RPZ117V120 |
Fixture Type: |
UV Germicidal |
Input Voltage: |
120 |
Number Of Lamps: |
1 |
Lamp Watts: |
13W-17W |
Base: |
2-pin, 4-pin |
Dimensions: |
5.91" (L) x 0.91" (W) x 0.75" (H) Mounting Center 5.63" |
Lamp Compatibility: |
See PDF Link Provided |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Alternative Keywords: |
1P20256, 2P20256, 3P20256 |
Case Size: |
10 |
