Description
Acuity Acuity nLight AIR rSI System Input Device, Input 120-480V, 2 Isolated Analog and Dry Inputs, 24Vdc Output Rating, Chase Nipple or Side Slot Access, Wireless with External Antenna Option, LED Indicators

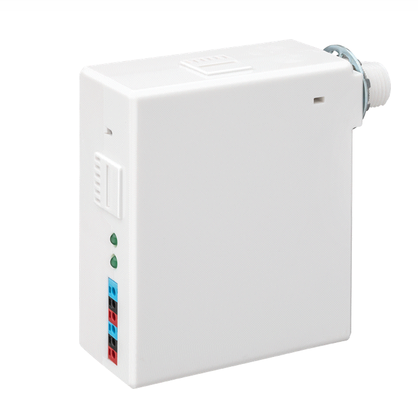

Acuity nLight AIR rSI System Input Device
nLight AIR System Input Device (rSI) converts analog device outputs (0-10V) and dry contact outputs to wireless, nLight AIR broadcasts to control intelligent luminaires and other lighting control devices.
Features
- Communicates with nLight Network
- Mounting 1/2” Knockout (7/8" hole)
- High Voltage Input 120-480V
- Extended Chase Nipple or Slide Slot access to dry contact inputs
- Supported Connections: Dry contact output or analog output (sinking only)
- Plenum Rated (UL 2043)
- Damp Location Rating
- Color White
Product Options
Spec SheetsVideos
View AllClose
Additional Information
Our Part No: |
BSF-NL-RSI 2S |
Mfr Part #: |
RSI 2S |
Manufacturer Material Code: |
Varies Based On Option Selected |
Brand: |
Acuity nLight |
Fixture Type: |
Fluorescent, LED |
Input Voltage: |
120-480V (High Voltrage) |
Dimensions: |
NA |
Features: |
Each device has two isolated inputs that connect with 0-10V or dry contact outputs |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
ea |
Alternative Keywords: |
NA |
