XAS180-SFPM-BK Lumark AP All-Selectable LED Area Site Luminaire - Black

Lumark XAS180-SFPM-BZ All-Selectable LED Area Site Luminaire - Black

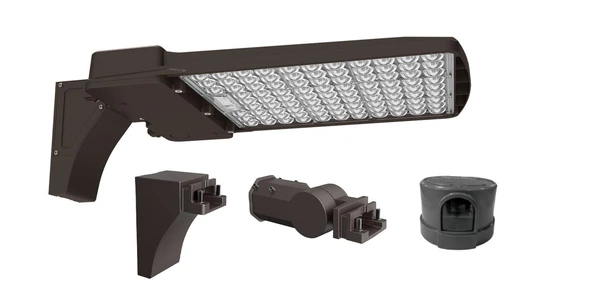

The Lumark XAS180-SFPM-BK by Cooper Lighting Solutions is a highly versatile, field all-selectable LED area and site luminaire. Finished in black (BK), this fixture is designed with a die-cast aluminum housing and an IP65 rated enclosure. It comes standard with a 3-pin NEMA twistlock photocell for dusk-to-dawn operation, as well as both slipfitter and pole mounts (SFPM) included in the box.

Core Specifications

• Selectable Wattage: Field adjustable between 180W, 144W, 108W, and 72W. Up to 27,520 Lumen - See specifications sheet.
• Selectable Color Temperature (CCT): Field switchable between 3000K, 4000K, and 5000K at 80 CRI.
• Selectable Distribution: Field adjustable between Type 3 (T3), Type 4 (T4), and Type 5 (T5) light distributions.
• Input Voltage: 120-347V, 50/60Hz.
• Dimming: 0-10V dimming driver is standard.
• Surge Protection: External parallel 10kV MOV Surge Protection Device included.
• Finish: Black (BK)

Construction & Durability Features

• Features a die-cast aluminum housing with a hinged, die-cast aluminum door.
• UV-resistant polycarbonate optics with an IP66 rated optical enclosure.
• Operating temperature range from a minimum of -40°C up to a maximum of 40°C.
• Provides full cutoff when mounted at a 0-degree tilt.
• Backed by a five-year limited warranty.

Frequently Asked Questions

How does this fixture mount to poles?

The XAS180-SFPM-BK includes two mounts: a pole mount arm that mounts directly to minimum 4-inch round or square poles, and a vertical slipfitter that mounts to 2-3/8" tenons (downward facing only).

Is the photocell included?

Yes, a 3-pin twistlock photocell receptacle and the photocontrol itself are included for default dusk-to-dawn operation.

How do I change the lumen output?

The fixture has a 4-position internal toggle switch used for adjusting the luminaire lumens. The default setting from the factory is the maximum lumen output.
