Description
Advance Xitanium LED Driver, 20W Max Power Output, Universal 120V-277V Input, Programmable Fixed Output Current 100-700mA (factory default 700mA), Output 10-54V, Analog 0-10V Dimmable

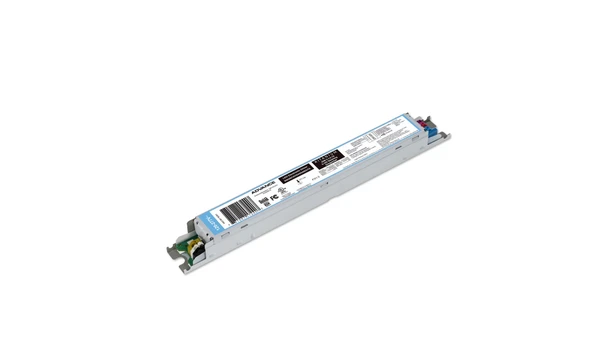

Advance Xitanium XI020C070V054BST5 LED Driver Guide
Quick Answer: The Advance Xitanium XI020C070V054BST5 (Signify / Philips Advance) is a 20W commercial programmable constant-current LED driver engineered for indoor architectural luminaires. Operating on universal 120–277V AC input, it delivers an adjustable output current from 100mA to 700mA (factory default 700mA) across a 10V to 54V DC operating window. Featuring 0–10V analog dimming down to 1%. SimpleSet wireless RFID programmability, Class 2 isolation, and a slim linear metal casing, it is tailored for low-wattage commercial troffers, linear strips, wall sconces, and architectural cove fixtures.
Advance Xitanium XI020C070V054BST5 Overview & Key Features
The Advance Xitanium XI020C070V054BST5 LED driver provides energy efficiency, flexible lumen tuning, and flicker-free dimming across commercial indoor installations:
- SimpleSet Contactless Programming: Wirelessly configure output operating current (100mA to 700mA), dimming curves, and minimum dim thresholds via RFID technology without powering the driver or disconnecting wires.
- 54V DC Operating Window: Wide 10V to 54V DC output voltage range designed to support modern low-to-mid power linear LED board arrays.
- Architectural 0–10V Dimming: Compatible with commercial 0–10V analog sinking dimmers and lighting control systems, providing continuous dimming down to 1%.
- IntelliVolt Universal AC Input: Operates reliably across universal line voltages from 120V to 277V at 50/60 Hz with high electrical efficiency.
- UL Class 2 Output Isolation: Fully isolated low-voltage secondary circuit ensures electrical safety and simplified luminaire wiring compliance.
- Slim Linear Metal Enclosure: Low-profile metal casing designed for seamless integration inside tight architectural fixture channels and shallow ceiling troffers.
Advance Xitanium XI020C070V054BST5 Technical Specifications
Core performance specifications and electrical ratings for the Advance Xitanium XI020C070V054BST5 driver:
| Specification Parameter | Rating / Value | Details & Performance Standards |
|---|---|---|
| Max Output Power | 20 Watts | Continuous constant current DC output |
| Input Voltage | 120 – 277 VAC | Universal line input, 50/60 Hz |
| Programmable Current Range | 100 mA – 700 mA (Factory: 700 mA) | Configurable via SimpleSet wireless RFID technology |
| Output Voltage Window | 10 – 54 VDC | Constant current operating DC voltage window |
| Control / Dimming Interface | 0–10V Analog Dimming | Class 1 or Class 2 0–10V dimming circuit |
| Dimming Range | 100% to 1% (or 5% selectable) | Smooth architectural dimming curve |
| Power Factor / THD | > 0.90 PF / < 20% THD | Commercial grade high power factor performance |
| Max Case Temperature (Tc) | 85°C (185°F) | Maximum allowable operating case temperature |
| Output Isolation | UL Class 2 Isolated | Safe low-voltage secondary output circuit |
| Enclosure Type | Linear Metal Enclosure | Low-profile linear casing (11.02" L x 1.18" W x 1.0" H) |
| Compliance & Certifications | UL Recognized, CSA, FCC Title 47 | RoHS compliant, Class P thermally protected, Damp & Dry rated |
Installation & Wiring Guidelines
- Power Disconnect: Always shut off main AC electrical power at the circuit breaker panel prior to installing, wiring, or servicing the driver.
- AC Input Connections: Connect AC line power to Black (Line), White (Neutral), and securely ground the metal casing to the luminaire chassis.
- DC Output Connections: Connect Red (LED+) and Blue (LED-) leads directly to the linear LED boards observing correct polarity. Keep secondary wire runs within manufacturer-specified distances.
- 0–10V Dimming Connections: Connect Purple (0–10V+) and Gray/Pink (0–10V-) leads to the dimming controller or sensor. If dimming is unused, cap and insulate each wire separately.
- Thermal Heat Sinking: Mount the driver flat against the grounded metal fixture enclosure to facilitate proper thermal heat transfer and maintain Tc below 85°C.
Frequently Asked Questions
What does "XI020C070V054BST5" stand for in Advance's catalog?
"XI" designates Xitanium Indoor, "020" represents 20W maximum output power, "C070" indicates 700 mA maximum current, "V054" denotes 54 VDC maximum output voltage, "B" indicates terminal configuration, "S" denotes SimpleSet programmability, "T" denotes standard 0–10V dimming, and "5" denotes the product release generation.
How does the XI020C070V054BST5 compare to XI030C110V054BST5 and XI075C200V054BST5?
All three drivers belong to the same Generation 5 platform featuring a 54V DC window, 0–10V dimming down to 1%, and SimpleSet RFID programming. The XI020C070V054BST5 is the 20W model (up to 700mA), while the XI030 is 30W (up to 1100mA) and the XI075 is 75W (up to 2000mA).
Can the output current be tuned in the field?
Yes. Using Philips/Advance SimpleSet RFID handheld tools or desktop software, the output current can be precisely tuned without energizing the fixture or breaking wire connections.
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No.: |
BSF-XI020C070V054BST5 |
Manufacturer Part No.: |
XI020C070V054BST5 |
Manufacturer Material Code: |
929002779913 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
20W |
Max Output Current: |
700mA |
Output Current Factory Setting: |
700mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
11.02"(L) x 1.18"(W) x 1.00"(H) |
UL Class: |
Class 2, Class P |
Warranty: |
Manufacturer's |
Case Size: |
18 |
Alternative Keywords: |
XI020C070V054BST5M |
