Description

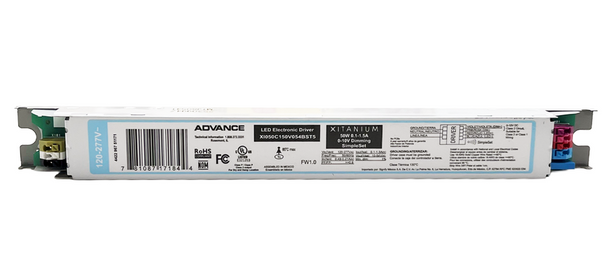

Advance Xitanium Constant Current LED Driver with SimpleSet, 50W Max Power Output, Universal 120-277V Input, Fixed Programmable 100-1500mA (1500mA factory default) Output Current, 10-54Vdc Output, Analog 0-10V Dimming 1%-100%
Advance Xitanium Programmable Constant Current LED Power Supply - 50W 1500mA
Xitanium 50W G5 0.1-1.5A 54V 120-277V
- Total Power: 50 Watts
- Input Voltage: 100-277 VAC
- Output Volts 10-54V
- Programmable Setting:(if different than default value, enter value in Custom Settings above)
- Fixed Output Current: 1500mA (default) range 100mA to 1500mA
- Dimming Curve: Linear (default) or Logarithmic
- Minimum Dimming Level: 1% (default)
- Analog 0-10V Dimming
- Class 2
- Dual feed terminal block connections
- UL Damp and Dry
- Programmable Options: fixed output current,
Replacement candidate for the discontinued Advance XI054C150V054DNT1
Spec SheetsAdditional Information
Our Part No.: |
BSF-ADV-XI050C150V054BST5 |
Manufacturer Part No.: |
XI050C150V054BST5 |
Manufacturer Material Code: |
929002774313 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
50W |
Max Output Current: |
1500mA |
Output Current Factory Setting: |
1500mA |
Output Current Programmable Range: |
100-1500mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
11.02"(L) x 1.16"(W) x 1.00"(H) |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
18 |
