Description
Advance Xitanium Constant Current LED Driver with SimpleSet, 54W Max Power Output, Universal 120-277V Input, Programmable 100-1500mA (1100mA factory default setting) Output Current, 27-54Vdc Output, Analog 0-10V 1%-100% Dimming

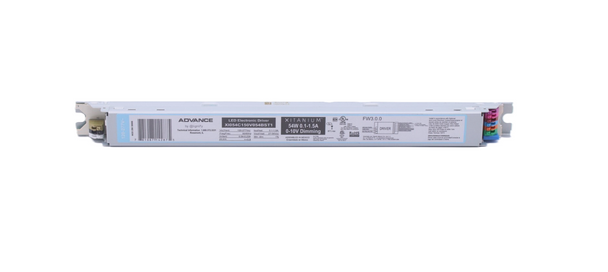

Advance Xitanium Programmable Constant Current LED Power Supply - 54W 1100mA
- Total Power: 54 Watts
- Programmable: 1100mA factory default with program range 100mA to 1500mA via external resistor or SimpleSet programming
- Input Voltage: 100-277 VAC
- Output Volts 27-54V
- Dimmable Analog 0-10V down to 1%
- Analog Class 1 or Class 2 Wiring
- UL Damp and Dry
Replacement candidate for the discontinued Advance XI054C150V054DNT1
Approved Dimmer List (others may work as well):
- Lutron - Visit www.lutron.com/advance for a list of dimmers (Mark VII) that will work with this driver
- Leviton IllumaTech IP7 series
- Philips Sunrise SR1200ZTUNV
Spec SheetsAdditional Information
Our Part No.: |
BSF-XI054C150V054BST1 |
Manufacturer Part No.: |
XI054C150V054BST1 |
Manufacturer Material Code: |
929000752513 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
54W |
Max Output Current: |
1500mA |
Output Current Factory Setting: |
1100mA |
Output Current Programmable Range: |
100-1500mA |
Max Output Voltage: |
54V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
|
Location Rating: |
Dry/Damp |
Dimensions: |
14.17"(L) x 1.18"(W) x 1.00"(H) |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
18 |
