Description
Advance Xitanium LED Driver, 72W Max Power Output, Input 120V-277V, 3000mA Fixed Output Current, Output 12-24V, 0-10V Dimmable 10%-100%

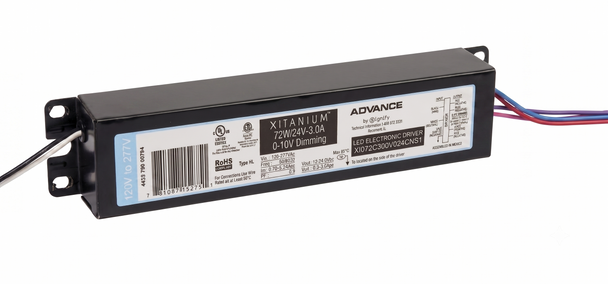

Advance Xitanium 72W 3000mA Constant Current LED Driver
72W 120-277V 3.0A 0-10V
- Total Output Power: 72Watts
- Fixed Output Current: 3.0A (3000mA)
- Input Voltage: 120 to 277 VAC
- Output Voltage Range: 12V-24V
- IP66, UL Damp and Dry, Type HL
- Dimmable 10%-100%, 0-10V Analog
- Class 1 and Class 2 Wiring
Spec Sheets
Additional Information
Our Part No.: |
BSF-XI072C300V024CNS1 |
Manufacturer Part No.: |
XI072C300V024CNS1 |
Manufacturer Material Code: |
929001708013 |
Brand: |
Signify Advance Xitanium |
Fixture Type: |
LED |
Product Data Sheet: |
See PDF Link Provided |
Driver Type: |
Constant-Current |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
72W |
Max Output Current: |
3000mA |
Max Output Voltage: |
24V |
Dimming: |
Analog (0-10V) |
Location Rating: |
Dry/Damp |
Dimensions: |
9.45"(L) x 1.7"(W) x 1.14"(H) |
UL Class: |
Class 2 |
Features: |
Operating Temp Range: -40°C to +55°C |
Warranty: |
Manufacturer's 5 Year |
Case Size: |
20 |
