Advance by Signify

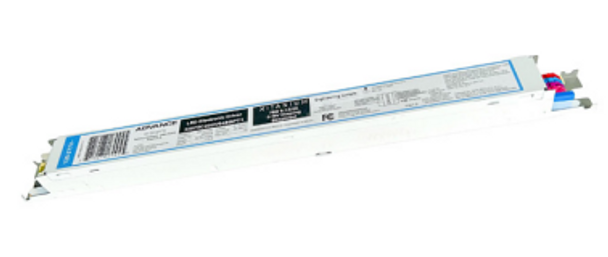

XI075C200V048BPT1 Advance Xitanium SR Programmable Constant Current LED Driver - 75W 2000mA Sensor-Ready

(No reviews yet) Write a Review
SKU:
BSF-XI075C200V048BPT1
UPC:
781087170045
MPN:
XI075C200V048BPT1
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
Bulk Pricing:
Buy in bulk and save
  • XI075C200V048BPT1 Advance Xitanium SR LED Driver - 75W 2000mA Sensor Ready
  • XI075C200V048BPT1 Advance Xitanium SR LED Driver - Specifications
  • XI075C200V048BPT1 Advance Xitanium SR LED Driver - Dimensions
  • XI075C200V048BPT1 Advance Xitanium SR LED Driver - Wiring
  • Advance Xitanium XI075C200V048BPT1 - Catalog Number Explanation
  • Signify logo
MSRP: $24.00
Now: $19.95
Was: $24.00
— You save $4.05
Frequently bought together:

Description


Advance Xitanium SR Constant Current LED Driver is Sensor Ready (SR), 75W Max Power Output, Universal 120-277V Input, Fixed Adjustable Output Current via External Resistors or SimpleSet Programming 100-2000mA (factory default 2000mA), 27-48V Output, Analog 0-10V Dimming 0-10V, Dry & Damp Rated

Advance Xitanium SR XI075C200V048BPT1 LED Driver Guide

Quick Answer: The Advance Xitanium SR XI075C200V048BPT1 (Signify / Philips Advance) is a 75W Sensor Ready (SR) programmable constant-current LED driver engineered for connected indoor lighting fixtures. Operating across 120–277V AC input, it delivers an adjustable output current up to 2000mA across a 27V to 48V DC window. Featuring a built-in DALI-based Sensor Ready interface with an integrated auxiliary power supply (SR bus power), SimpleSet wireless RFID programming, and dim-to-off capability, it connects directly to smart occupancy/daylight sensors and IoT lighting nodes without auxiliary power packs.

Advance Xitanium SR XI075C200V048BPT1 Overview & Key Features

The Advance Xitanium SR LED driver serves as the foundation for modern connected luminaires, providing integrated sensor power, bidirectional digital telemetry, and flexible programmability:

  • Integrated Sensor Ready (SR) Technology: Incorporates built-in SR bus power supply and standard digital two-wire communication, enabling direct fixture-level connection to smart sensors and wireless nodes without external power packs.
  • SimpleSet Wireless Programming: Enables fast, hands-free configuration of output current (700mA to 2000mA), dimming curves, and diagnostic parameters via contactless RFID technology without energizing the driver.
  • Energy Reporting & Diagnostics: Bidirectional digital communication provides real-time power metering, lifetime operating hours, and driver diagnostic data directly to building management systems.
  • Smooth Dimming & Dim-to-Off: Delivers continuous digital dimming down to 1% and supports standby power down to <0.5W in dim-to-off state.
  • Class 2 Isolated Output: UL Class 2 compliant low-voltage output (27–48V DC) for safe handling and simplified fixture wiring.

Advance Xitanium SR XI075C200V048BPT1 Technical Specifications

Core performance specifications and electrical parameters for the Advance Xitanium SR XI075C200V048BPT1 driver:

Specification ParameterRating / ValueDetails & Performance Standards
Max Output Power 75 Watts Constant current programmable DC output
Input Voltage 120 – 277 VAC Universal line input, 50/60 Hz
Programmable Current Range 700 mA – 2000 mA (Factory: 2000 mA) Configurable via SimpleSet RFID programming
Output Voltage Window 27 – 48 VDC Regulated DC operating voltage range
Control / Dimming Interface Sensor Ready (SR) / DALI-compatible Digital communication with integrated SR bus power
Dimming Range 100% to 1% / Dim-to-Off Ultra-deep smooth digital dimming
Standby Power Consumption < 0.5 Watts High efficiency standby for code-compliant smart controls
Power Factor / THD > 0.90 PF / < 20% THD Commercial grade high power factor rating
Max Case Temperature (Tc) 85°C (185°F) Thermal limit rating for luminaire enclosures
Enclosure & Form Factor Linear Metal Enclosure Low-profile linear casing (14.17" L x 1.18" W x 1.06" H)
Compliance & Certifications UL Listed / Recognized, Class 2, FCC RoHS compliant, Class P thermally protected, Damp & Dry

Installation & Wiring Guidelines

  • Power Disconnect: Always turn off main AC power at the circuit breaker panel prior to installing, wiring, or servicing the driver.
  • AC Input Connections: Connect AC line power to Black (Line), White (Neutral), and ensure proper equipment ground connection to the metal enclosure.
  • DC Output Connections: Connect Red (LED+) and Blue (LED-) leads directly to the LED array or linear boards observing correct polarity.
  • Sensor Ready (SR) Connections: Connect the SR leads (SR+ / SR-) directly to the compatible sensor or wireless luminaire controller. The driver powers the sensor over the two-wire SR bus.
  • Thermal Management: Secure the driver directly to the grounded metal luminaire body to facilitate proper thermal heat transfer and maintain Tc below 85°C.

Frequently Asked Questions

What does "XI075C200V048BPT1" stand for in Advance's catalog?

"XI" designates Xitanium Indoor, "075" represents 75W max output power, "C200" indicates 2000 mA maximum current, "V048" denotes 48 VDC maximum output voltage, "B" indicates terminal configuration, "P" signifies programmable via SimpleSet, and "T1" denotes the product generation.

What is the advantage of an Advance Sensor Ready (SR) driver?

Advance Xitanium SR drivers eliminate the need for extra power supplies, auxiliary relays, and complicated wiring by providing DC bus power and digital two-way communication directly to connected sensors and wireless nodes.

Can the output current be changed in the field?

Yes. Using Philips/Advance SimpleSet handheld programming tools or field software, the output current can be reconfigured wirelessly via RFID without applying power to the fixture.

PDF Icon Spec Sheets

Download the official manufacturer documentation and specifications:

Advance Xitanium XI075C200V048BPT1 Spec Sheet

Advance Xitanium SR LED Drivers Design-in Guide

View AllClose

Additional Information

Our Part No.:
BSF-XI075C200V048BPT1
Manufacturer Part No.:
XI075C200V048BPT1
Manufacturer Material Code:
929002757313
Brand:
Signify Advance Xitanium
Fixture Type:
LED
Driver Type:
Constant-Current-Programmable
Input Voltage:
120-277V (Universal)
Max Output Power:
75W
Max Output Current:
2000mA
Output Current Factory Setting:
2000mA
Max Output Voltage:
48V
Dimming:
Analog (0-10V)
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
11.02"(L) x 1.18"(W) x 1.00"(H)
UL Class:
Class P
Warranty:
Manufacturer's
Case Size:
18
