Description

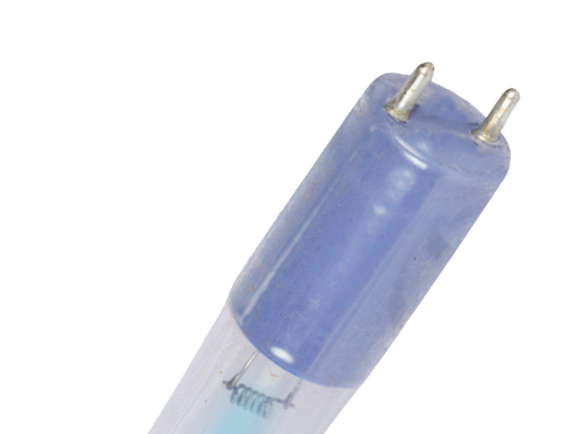

STERIL-AIRE 20000200 (GTD 22 VO) DE Series Germicidal UVC Emitter (Lamp Only) for HVAC Systems, Universal 120-277V Input, 72W, Replacement Emitter for DE 241 VO (10002200) Double-Ended Very High Output T5, 24" Fixture / 22.4" Emitter, Medium Bi-pin
Sterli-aire 20000200 DE Series UVC Emitter Lamp - 22" 72W
Steril-Aire Double-Ended (DE Series) fixtures are used for internal installation in new and retrofit, medium to large air handling systems in commercial, industrial, health care and institutional buildings.
DE Series Double Ended Emitter
- GTD 22 VO – Double Ended for DE 241 VO (10002200) Fixture
- Lamp Diameter: T5
- Lamp Type: VHO, Hot Cathode
- Glass Type: L (non-Ozone)
- Operating Power: 72W
- Base Style: medium bi-pin
- Base Material: Blue Ceramic
- UVR Direct Fit Model Number DEL-22RL-HO-T5
Compatible Power Supply Kit
10000154 (10000153-1) for DE 181 to 421
Note: UV Resources and Steril-Aire are now one entity
Spec Sheets
Additional Information
Our Part No: |
BSF-SA-20000200 |
Mfr Part #: |
20000200, 20000200-4, 20000200-30 |
Fixture Type: |
UVC |
Input Voltage: |
120-277V (Universal) |
Lamp: |
GTD 22 VO |
Wattage: |
78W |
Base: |
E26 |
Dimensions: |
22.4" T5 |
Compatible Fixture: |
DE 241 VO 10002200 |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
4, 30 |
