Description
eldoLED LINEARdrive 200D-D2Z1D DC-powered Programmable Constant Voltage LED Driver, 224W Max Power Output, 12/24VDC Input, Low Voltage 12-28Vdc Output, Output Current 8000mA Max, 2 LED outputs with 1 control channel, DALI DT6 LEDCode2 control protocol, Dimming 0.1-100%, Long Plastic Case
eldoLED LINEARdrive 200D-D2Z1D 200W DALI LED Driver
LINEARdrive DC, 224W, 8A, DALI DT6, 12-28VDC Input, 1 control channel, 2 constant voltage outputs, plastic long case
The LINEARdrive DC series by eldoLED is a low-voltage constant voltage LED driver to control shade of white or show sequence without an external controller.

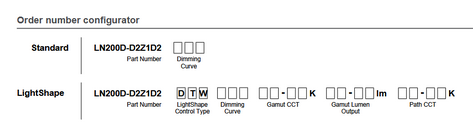

Common Program Codes
Default: *2636V2 LN200D-D2Z1D2 350MA LOG
Spec SheetsAdditional Information
Our Part No.: |
BS46-LN200D-D2Z1D2 |
Manufacturer Part No.: |
200D-D2Z1D |
Manufacterer Material Code: |
NA |
Brand: |
Acuity eldoLED LINEARdrive |
Fixture Type: |
LED |
Driver Type: |
Constant-Voltage-Programmable |
Input Voltage: |
12-28VDC |
Max Output Power: |
200W, 224W |
Max Output Current: |
8000mA |
Max Output Voltage: |
28V |
Dimming: |
Dimmable |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
6.02" L x 1.97" W x 0.91" H |
UL Class: |
Class 2 |
Features: |
Load 8A max, irrespective of whether using one or both LED outputs, DALI DT6 LEDCode2 |
Features: |
1 control channel, 2 LED Outputs |
Warranty: |
Manufacturer's |
Case Size: |
12 |
