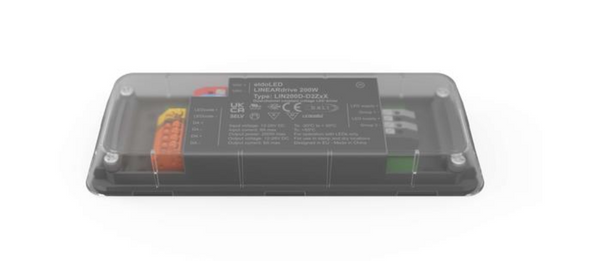

200D-D2Z2C LINEARdrive (LN200D-D2Z2C) eldoLED Programmable Constant Voltage LED Driver - 200W DALI DC-powered

(No reviews yet) Write a Review
SKU:
BS46-LN200D-D2Z2C2
MPN:
LN200D-D2Z2C2
Availability:
In Stock - unless otherwise indicated by stock status below
Shipping:
Calculated at Checkout
  • 200D-D2Z2C eldoLED LINEARdrive Programmable Constant Voltage LED Driver - 200W DALI DC-powered
  • 200D-D2Z2C eldoLED LINEARdrive - Input/Output Specifications
  • 200D-D2Z2C eldoLED LINEARdrive - Input/Output Specifications
  • 200D-D2Z2C eldoLED LINEARdrive - Wiring
  • 200D-D2Z2C eldoLED LINEARdrive - Dimensions
  • 200D-D2Z2C eldoLED LINEARdrive - Terminal Connections
  • 200D-D2Z2C eldoLED LINEARdrive - Model Options
  • 200D-D2Z2C eldoLED LINEARdrive - Qualified Power Supplies
MSRP: $90.00
Now: $74.95
Was: $90.00
— You save $15.05
Frequently bought together:

Description


eldoLED LINEARdrive 200D-D2Z2C DC-powered Programmable Constant Voltage LED Driver, 224W Max Power Output, 12/24/28VDC Input, 2 Output Channels, Low Voltage 12-28Vdc Output, Output Current 8000mA Max per LED, 2 Output Channels with with 2 Control Channels, DALI-2 DT8 control protocol, Dimming 0.02-100%, Long Plastic Case

eldoLED LINEARdrive 200D-D2Z2C 200W 2-channel 12-28VDC DALI LED Driver

LINEARdrive DC, 200W, 8A, DALI DT8, 12-28VDC Input, 2 control channel, 2 constant voltage outputs, plastic long case

The LINEARdrive DC-powered LED Drivers are designed for constant voltage LED tape lighting

Features

  • Nominal input voltage DC 12/24/28V
  • Maximum input current 8A
  • LED output load 8A maximum for 1 or 2 channels
  • Output power 224W max
  • LED outputs:  2 LED output voltage 12 – 28V
  • Control channels: 2
  • Control protocol : DALI Device Type 8 LEDcode2
  • Dimming range 100% – 0.02%
  • Dimming curve options : LOG Logarithmic (default), LIN Linear

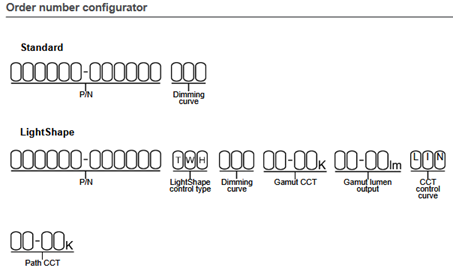

Common Programming Options

Default:  *2725UN   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-10LM

Product Catalog Number CICode UPC   Product Catalog Number CICode UPC
LN200D-D2Z2C2 350MA TWH LOG 18-27K 12-13LM 105NTC *291TPK 198934285621   LN200D-D2Z2C2 350MA TWH LOG 27-60K 7.2-9.2LM 105NTC *290NM7 196183842411
LN200D-D2Z2C2 350MA TWH LOG 18-30K 10-10LM 105NTC *2937UN 198935104259   LN200D-D2Z2C2 350MA TWH LOG 27-60K 7.55-9LM 105NTC *290NMJ 196183842510
LN200D-D2Z2C2 350MA TWH LOG 18-35K 6.9-10.6LM MAX 17.5LM 105NTC *2939MU 198935120488   LN200D-D2Z2C2 350MA TWH LOG 27-60K 7.75-9LM 105NT *290NNS 196183842855
LN200D-D2Z2C2 350MA TWH LOG 18-40K 10-10LM 105NTC *294PRX 198935859920   LN200D-D2Z2C2 350MA TWH LOG 27-60K 9.3-10.5LM 105NTC *290NNA 196183842749
LN200D-D2Z2C2 350MA TWH LOG 21-30K 3.6-4.45LM 105NTC *289G1Y 197590668137   LN200D-D2Z2C2 350MA TWH LOG 27-60K 9.3-10.8LM 105NTC *290NNK 196183842824
LN200D-D2Z2C2 350MA TWH LOG 21-30K 9.2-12LM 105NTC *289G1U 197590668151   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-10LM 105NTC *2725UN 194995436279
LN200D-D2Z2C2 350MA TWH LOG 21-40K 10-10LM 105NTC *295AFG 196183902849   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-10LM 30-50K 105NTC *291N0L 198934242693
LN200D-D2Z2C2 350MA TWH LOG 22-40K 6-7.2LM 105NTC *291JKH 198934211453   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-10LM 35-55K 105NTC *291R4K 198934262059
LN200D-D2Z2C2 350MA TWH LOG 22-50K 3.35-4.6LM MAX 7.95LM 105NTC *28469H 197589419979   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-10LM MAX 05LM 105NTC *292SJM 198934633200
LN200D-D2Z2C2 350MA TWH LOG 22-50K 5.85-7.95LM MAX 13.8LM 105NTC *28468R 197589419887   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-10LM MAX 12LM 105NTC *273RTV 194995804993
LN200D-D2Z2C2 350MA TWH LOG 22-50K 9.9-13LM MAX 22.9LM 105NTC *28468L 197589419870   LN200D-D2Z2C2 350MA TWH LOG 27-65K 10-12LM MAX 12LM 105NTC *273SC1 194995809219
LN200D-D2Z2C2 350MA TWH LOG 22-65K 1.24-1.49LM 105NTC *27837U 196182820403   LN200D-D2Z2C2 350MA TWH LOG 27-65K 11.94-12.71LM 105NTC *290W1C 198934035813
LN200D-D2Z2C2 350MA TWH LOG 25-48K 3.6-4.3LM MAX 7.9LM 105NTC *28468U 197589419900   LN200D-D2Z2C2 350MA TWH LOG 27-65K 16.54-18.03LM 105NTC *290W1F 198934035790
LN200D-D2Z2C2 350MA TWH LOG 25-65K 0.63-0.73LM 105NTC *2848YW 197589440140   LN200D-D2Z2C2 350MA TWH LOG 27-65K 17.65-19.65LM 105NTC *2727AK 194995447336
LN200D-D2Z2C2 350MA TWH LOG 27-40K 10.02-11.5LM 105NTC *2727AE 194995447268   LN200D-D2Z2C2 350MA TWH LOG 27-65K 26.3-30.8LM 105NTC *2788L3 196182859823
LN200D-D2Z2C2 350MA TWH LOG 27-50K 4.96-5.96LM 105NTC *290MWK 197590997213   LN200D-D2Z2C2 350MA TWH LOG 27-65K 3.6-4.45LM 105NTC *289CX5 197590649044
LN200D-D2Z2C2 350MA TWH LOG 27-57K 10.04-8.8LM MAX 14.4LM 105NTC *286P40 197590009510   LN200D-D2Z2C2 350MA TWH LOG 27-65K 4-4.6LM 105NTC *290NP0 196183842909
LN200D-D2Z2C2 350MA TWH LOG 27-60K 11.2-14.5LM 105NTC *290SXL 198934007247   LN200D-D2Z2C2 350MA TWH LOG 27-65K 7.32-7.8LM MAX 14LM 105NTC *280F6X 196183376121
LN200D-D2Z2C2 350MA TWH LOG 27-60K 11.94-12.71LM 105NTC *2911JN 198934076113   LN200D-D2Z2C2 350MA TWH LOG 27-65K 9.2-12LM 105NTC *289CXE 197590649105
LN200D-D2Z2C2 350MA TWH LOG 27-60K 16.54-18.03LM 105NTC *2911JP 198934076120   LN200D-D2Z2C2 350MA TWH LOG 27-65K 90.4-98LM 105NTC *287S8C 197590258154
LN200D-D2Z2C2 350MA TWH LOG 27-60K 4.7-5.5LM 105NTC *290NMS 196183842596   LN200D-D2Z2C2 350MA TWH LOG 30-40K 9.35-9.93LM 105NTC *277CYC 196182644542
LN200D-D2Z2C2 350MA TWH LOG 27-60K 6-7.5LM 105NTC *290SXK 198934007230   LN200D-D2Z2C2 350MA TWH LOG 30-70K 0.5-0.55LM 105NTC *275YRE 196182311536
View AllClose

Additional Information

Our Part No.:
BS46-LN200D-D2Z2C2
Manufacturer Part No.:
LN200D-D2Z2C2
Manufacterer Material Code:
*2725UN
Brand:
Acuity eldoLED LINEARdrive
Fixture Type:
LED
Driver Type:
Constant-Voltage-Programmable
Input Voltage:
12/24/28VDC
Max Output Power:
200W, 224W
Max Output Current:
8000mA
Max Output Voltage:
28V
Dimming:
DALI-2 DT8
Product Data Sheet:
See PDF Link Provided
Location Rating:
Dry/Damp
Dimensions:
6.02" L x 1.97" W x 0.91" H
UL Class:
Class 2
Features:
Tunable White, 2 LED Outputs
Warranty:
Manufacturer's
Case Size:
12
