Description
Bridgelux Vero 13 LED Array chip on board (CoB), 2000 lumen, 80 CRI min, 2700K Warm White Color Temperature, 3-Step MacAdam Ellipse
Order Separately - Molex Pico Wire Harness for Bridgelux Vero 10/13/18/29 Arrays

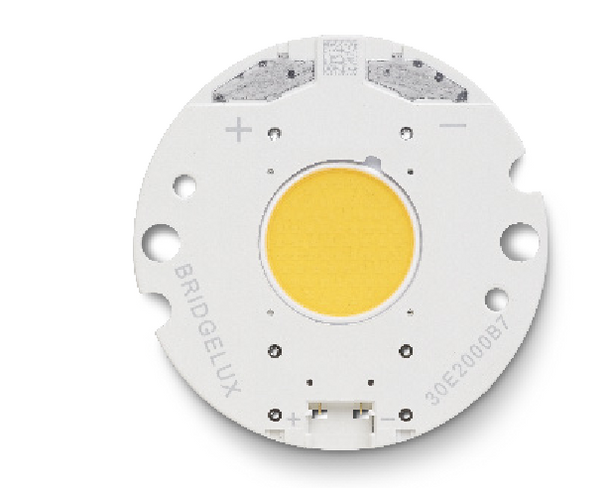

Bridgelux Vero 13 LED Array Chip on Board - 2000LM 2700K
VERO 13 GEN 7 Series 2700K 80 CRI min 2926 LM 3 SDCM Warm White LED Array CoB
Vero 13 is the second smallest form factor in the Vero family of the next generation solid state light sources. In addition to delivering the performance and light quality required for many lighting applications,
Features
- Dual poke-in connectivity
- 36.20mm side-to-side, flat height of 3.60mm
- Viewing Angle: 120°
Spec Sheets
Additional Information
Our Part No: |
BSF-BLX-BXRC-27E2000-C-73 |
Mfr Part #: |
BXRC-27E2000-C-73 |
Brand: |
Bridgelux |
Product Marking: |
BXRC-27E2000-C-73 |
Fixture Type: |
LED |
Lumens: |
2000 |
Color Temperature: |
2700K |
Max Current: |
1260mA |
Features: |
Flat Lens, Round |
Dimensions: |
36.20mm Dia |
CRI: |
80+ |
Dimming: |
Yes |
Viewing Angle: |
120° |
Case Size: |
100 |
Warranty: |
Manufacturer's |
