Description

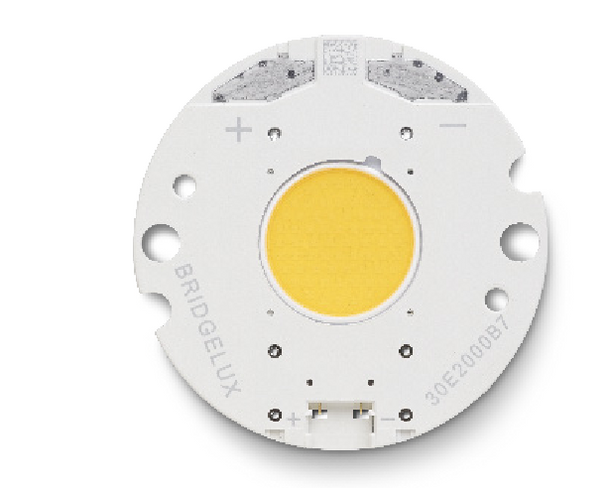

Bridgelux Vero 13 LED Array chip on board (CoB), 2000 lumen, 80 CRI min, 4000K Bright White Color Temperature, 3-Step MacAdam Ellipse, 1260mA max
Order Separately - Molex Pico Wire Harness for Bridgelux Vero 10/13/18/29 Arrays
Bridgelux Vero 13 LED Array Chip on Board - 2000LM 3000K 1260mA
ERO 13 GEN 7 Series 4000K 80 CRI min 35V 3 SDCM Neutral White LED Array CoB
Vero 13 is the second smallest form factor in the Vero family of the next generation solid state light sources. In addition to delivering the performance and light quality required for many lighting applications,
- Dual poke-in connectivity
- 36.20mm side-to-side, flat height of 3.60mm
- Viewing Angle: 120°
Spec Sheets
Additional Information
Our Part No: |
BSF-BLX-BXRC-40E2000-C-73 |
Mfr Part #: |
BXRC-40E2000-C-73 |
Brand: |
Bridgelux |
Product Marking: |
BXRC-40E2000-C-73 |
Fixture Type: |
LED |
Lumens: |
2000 |
Color Temperature: |
4000K |
Max Current: |
1260mA |
Features: |
Flat Lens, Round |
Dimensions: |
36.20mm Dia |
CRI: |
80+ |
Dimming: |
Yes |
Viewing Angle: |
120° |
Case Size: |
100 |
Warranty: |
Manufacturer's |
