Description

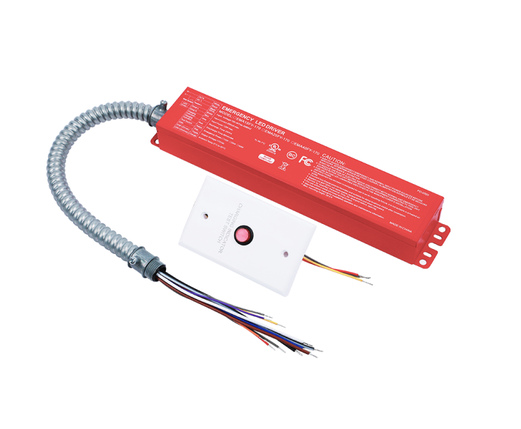

HELPOWER EMA40FY-170 Constant Power Emergency LED Driver, 40W Max Power Output (LEDs loads less than 320W), Input Voltage 120-347V, High Voltage Output 170Vdc, Self-diagnostic, Lithium Ion Battery, Conduit, California CEC Title 20 Compliant
HELPOWER Constant Power Emergency LED Driver - 40W 170Vdc
Includes LED driver, conduit, IP65 face plate and test switch, wire nuts, instruction manual
Features
- UL Listed for US and CANADA Listed to UL924 and tested to CSA C22.2 NO.141
- Field or factory installation
- Constant output power
- Self-testing/Self-Diagnostic
- Li-ion Battery:Over Temperature Protection, Over Charge Protection, Over Discharge Protection
- Malfunction indicator function
- For wiring to the led driver's AC input
- 1/2" Conduit
Exact Replacement for: EiKO EEBE40WHA170S (13574), ETi EMA40FY-170
Spec SheetsAdditional Information
Our Part No: |
BSF-HLP-EMA40FY170 |
Mfr Part #: |
EMA40FY-170 |
Manufacturer Material Code: |
NA |
Brand: |
Helpower |
Fixture Type: |
Emergency |
Max Output Power: |
40W |
Operates Loads Less Than: |
320W |
Input Voltage: |
120-347V (High Voltage) |
Output Voltage: |
170V |
Lumens: |
NA |
Dimensions: |
12.33” (L) x 2.33” (W) x 1.54” (H) |
UL Class: |
Class 2 |
CA Title 20 Compliant: |
Yes |
Product Data Sheet: |
See PDF Link Provided |
Dimmable: |
Analog (0-10V) |
Alternative Keywords: |
Replaces EiKO EEBE40WHA170S (13574), ETi EMA40FY-170 |
Warranty: |
Manufacturer's |
