Description
HELPOWER EMH-08170-HY Constant Power Emergency LED Driver, 8W Max Power Output, Input Voltage 120-347V, High Voltage Output 170Vdc, Self-diagnostic, Lithium Ion Battery, Conduit, California CEC Title 20 Compliant
HELPOWER Constant Power Emergency LED Driver - 8W 170Vdc

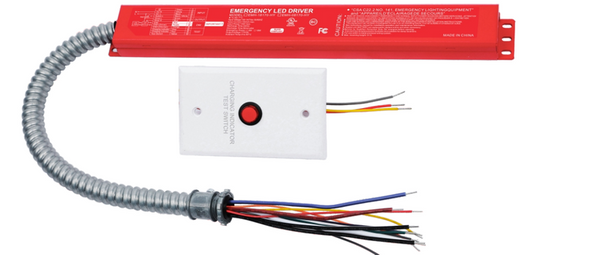

Includes LED driver, 1/2" NPS conduit (straight or 90°), IP65 rated face plate and test switch, wire nuts, instruction manualFeatures
- UL Listed for US and CANADA Listed to UL924 and tested to CSA C22.2 NO.141
- Rated for use in plenum, damp location, and enclosed and gasketed fixtures
- Field or factory installation
- Constant output power
- Recharge 24 hrs
- Self-testing/Self-Diagnostic
- Li-ion Battery:Over Temperature Protection, Over Charge Protection, Over Discharge Protection
- Malfunction indicator function
- For wiring to the led driver's AC input
- 1/2" NPS Conduit
Exact Substitute for: EiKO EEBE18WHA170S (11675), DiodeDriver DEME-8W-WHZ
Spec SheetsAdditional Information
Our Part No: |
BSF-HLP-EMH08170HY |
Mfr Part #: |
EMH-08170-HY |
Manufacturer Material Code: |
NA |
Brand: |
Helpower |
Fixture Type: |
Emergency |
Max Output Power: |
8W |
Operates Loads Less Than: |
50W |
Input Voltage: |
120-347V (High Voltage) |
Output Voltage: |
170V |
Lumens: |
NA |
Dimensions: |
13.59” (L) x 1.54” (W) x 1.0” (H) |
UL Class: |
Class 2 |
CA Title 20 Compliant: |
Yes |
Product Data Sheet: |
See PDF Link Provided |
Alternative Keywords: |
EiKO EEBE18WHA170S (11675), EiKO EEBE18WHA170S (11675), DiodeDriver DEME-8W-WHZ, 79-284 |
Warranty: |
Manufacturer's |
