Description
Sure-Lites INVM-25W-ADSD Auto-Dim Self-Diagnotic Emergency Inverter, 25W Max Power Output (200W dim loads), Universal 120-277V Input, CEC Title 20 Compliant, 0-10V auto dimming, 90 minutes of 120V or 277Vac (auto) output, flex conduit, integrated LED test switch

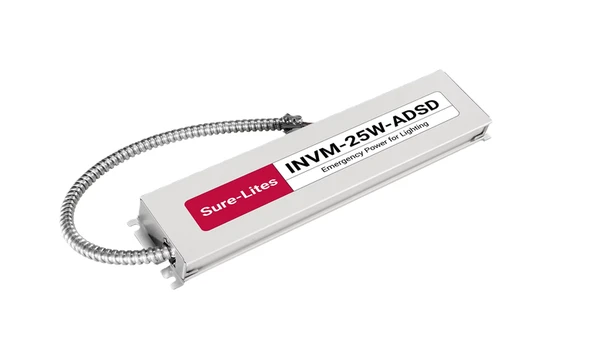

Sure-Lites INVM-25W-ADSD Emergency Micro Inverter - 25W Conduit Auto-Dim Self-Diagnostic
Provides 90 minutes of 25VA emergency power to LED, fluorescent luminaries, AC driven TLED and screw based lamps and will automatically run switched with 0-10V auto dimming for up to 200VA dimmable loads
- Max output power 25VA, supports up to 200VA 0-10V dimmable loads
- Remote mounting up to 250 feet maximum
- Universal 120-277V Input
- Automatically selected output voltage 120V or 277V
- Maintenance free lithium-ion battery
- Conduit
- Includes 2W-ITS Test Button
- IP65, Dry/Damp location rated
- UL and cUL Listed, CSA Certified
- CEC Title 20 compliant
Spec SheetsAdditional Information
Our Part No: |
BS27-CSL-INVM-25W-ADSD |
Mfr Part #: |
INVM-25W-ADSD |
Manufacturer Material Code: |
13696676 |
Fixture Type: |
LED, Fluorescent, Incadescent |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
25W |
Output Voltage: |
120V, 277V |
Dimensions: |
15.0" (L) x 3.58" (W) x 1.32" (H); 14.55" Mounting Center |
Product Data Sheet: |
See PDF Link Provided |
Dimming: |
Dimmable |
Location Rating: |
Dry/Damp |
Features: |
0-10V Auto Dimming to Max 200VA Load |
Alternative Keywords: |
No |
Warranty: |
Manufacturer's |
Case Size: |
6 |
