Description

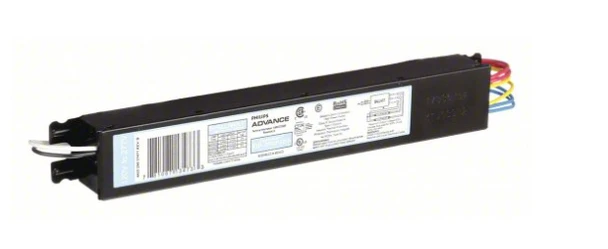

ADVANCE Optanium Electronic Fluorescent Ballast, Universal 120V-277V Input, 1 or 2 Lamp F32T8, F25T8, F17T8, Normal Ballast Factor, Programmed Rapid Start Ballast
Advance Optanium IOP-2PSP32-N Electronic Fluorescent Ballast Guide
Quick Answer: The Advance Optanium IOP-2PSP32-N (Signify / Philips Advance) is a high-efficiency 2-lamp electronic fluorescent ballast designed to operate 1 or 2 F32T8 lamps (as well as 25W, 28W, and 30W energy-saving T8s) across universal 120–277V AC line voltage. Featuring Programmed Start ignition, IntelliVolt auto-voltage sensing, Normal Ballast Factor (0.88), and a compact N-Can housing, it provides maximum lamp longevity in high-switching commercial environments such as occupancy sensor installations.
Advance Optanium IOP-2PSP32-N Overview & Key Features
The Advance Optanium IOP-2PSP32-N commercial ballast offers maximum electrical efficiency and lamp life protection across commercial troffers, wraparounds, and strip light fixtures:
- Programmed Start Technology: Gently preheats lamp filaments before striking the arc, minimizing cathode degradation and maximizing lamp life in occupancy sensor and frequently switched applications.
- IntelliVolt Universal Line Voltage: Automatically operates across AC input line voltages from 120V to 277V at 50/60 Hz.
- N-Can Compact Enclosure: Low-profile metal housing engineered to fit smoothly inside standard commercial fixture wireways and troffer channels.
- High Electrical Efficiency: High power factor (>0.98) with Total Harmonic Distortion (THD) under 10% for premium commercial performance.
Advance Optanium IOP-2PSP32-N Technical Specifications
Core performance specifications and electrical ratings for the Advance Optanium IOP-2PSP32-N ballast:
| Specification Parameter | Rating / Value | Details & Performance Standards |
|---|---|---|
| Input Voltage | 120 – 277 VAC | IntelliVolt auto-sensing supply, 50/60 Hz |
| Lamp Compatibility | F32T8 (32W), F28T8 (28W), F25T8 (25W), F30T8 | Standard and energy-saving linear T8 lamps |
| Number of Lamps | 1 or 2 Lamps | Operates 1 or 2 linear T8 fluorescent lamps |
| Starting Method | Programmed Start | Controlled cathode preheat ignition for occupancy sensors |
| Ballast Factor | 0.88 (Normal Ballast Factor) | Standard commercial light output level |
| Power Factor / THD | > 0.98 PF / < 10% THD | Commercial grade high power factor performance |
| Sound Rating | Class A | Quiet electronic operation for office environments |
| Compliance & Certifications | UL Listed, CSA Certified | RoHS compliant, Class P thermally protected |
Installation & Wiring Guidelines
- Power Disconnect: Always turn off main AC power at the circuit breaker prior to servicing or replacing the ballast.
- Programmed Start Wiring Schematic: Wire the input line and lamp leads according to the wiring schematic on the ballast case label. Programmed start circuitry requires dedicated pairs of leads connected to rapid/programmed start sockets.
- Enclosure Grounding: Securely mount the metal N-Can housing to the grounded metal fixture enclosure for safe electrical grounding and heat dissipation.
Frequently Asked Questions
What does "IOP-2PSP32-N" stand for in Advance's nomenclature?
"IOP" indicates Optanium series, "2" represents 2-lamp capacity, "PS" stands for Programmed Start, "P" signifies Premium efficiency, "32" indicates 32W T8 lamps, and "N" denotes the N-Can enclosure size.
What is the difference between IOP-2P32-N and IOP-2PSP32-N?
The IOP-2P32-N uses Instant Start ignition for maximum energy efficiency in continuous-burn commercial fixtures, while the IOP-2PSP32-N utilizes Programmed Start ignition to maximize lamp filament life in fixtures controlled by motion or occupancy sensors.
Can the Advance IOP-2PSP32-N operate 1 lamp instead of 2?
Yes. The IOP-2PSP32-N is UL listed and engineered to operate either 1 or 2 linear T8 fluorescent lamps safely.
Spec Sheets
Download the official manufacturer documentation and specifications:
Additional Information
Our Part No: |
BSF-ADV-IOP-2PSP32-N |
Mfr Part #: |
IOP2PSP32N |
Manufacturer Material Code: |
913701260601, 913701260602 |
Fixture Type: |
Electronic Fluorescent |
Input Voltage: |
120-277V (Universal) |
Lamp: |
(1/2) F32T8, (1/2) F25T8, (1/2) F17T8 |
Dimensions: |
9.50" L x 1.3" W x 1.0 " H, 8.9" MC |
Product Data Sheet: |
See PDF Link Provided |
Features: |
Parallel Wiring |
Start Method: |
Programmed Start |
Alternative Keywords: |
No |
Number Of Lamps: |
1, 2 |
Operates: |
F32T8, F25T8, F17T8 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
