Description
LEDVANCE tapTronic Outdoor Constant Current LED Driver, 180W Max Output Power, Universal 120-277V Input, Programmable (NFC) Fixed Output Current 350-1250mA (factory default 350mA), Output Voltage 70-280Vdc, 0-10V Analog Dimming 10%-100%, 12V Auxiliary, Dry/Damp/Wet Location Rated

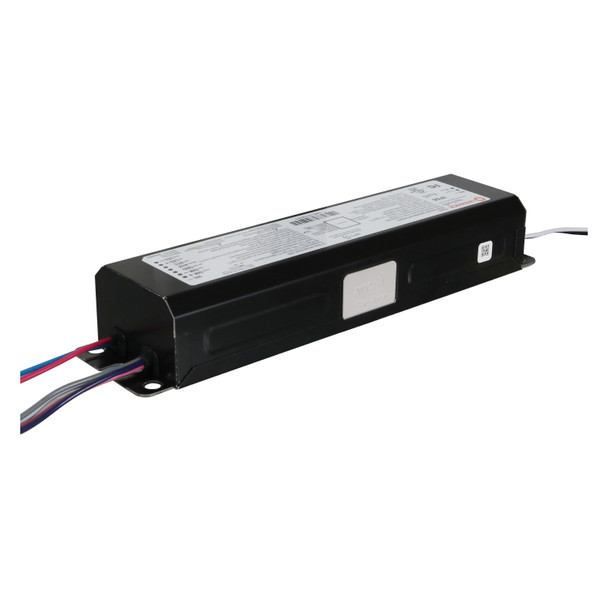

LEDVANCE tapTronic Outdoor Programmable Constant Current LED Driver - 180W 350mA IP66
180W 120-277V tapTronic™ NFC Compact Constant Current LED Driver, 350-1250mA programmable, DIM 0-10V 10-100% range, 12V AUX, Damp/Wet Rated
- AC to DC Converter
- Max Power Output 180W
- Input Voltage: 120-277 VAC
- Output Voltage: 70-280 VDC
- Fixed Output Current: 350-1250mA programmable, FACTORY DEFAULT 350mA
- NFC (Near Field Communication) Field-Programmable Via Mobile App:
- Output Current, Dim %
- Class 2
- IP66, Dry/Damp/Wet Location Rated
- 0-10V Analog Dimming 10%-100%
- Programmable Auxiliary Port: 12Vdc
- Lead Wires
- NAED 75855
Spec SheetsAdditional Information
Our Part No.: |
BSF-LEDVC-75855 |
Manufacturer Part No.: |
LEDrv180UNV1250DIMAUX12P6NFC |
Manufacturer Material Code: |
75855 |
Brand: |
LEDVANCE tapTronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
180W |
Max Output Current: |
1250mA |
Output Current Factory Setting: |
350mA |
Output Current Programmable Range: |
350-1250mA |
Output Current Common Custom Settings: |
350mA, 500mA, 700mA, 900mA, 1050mA, 1250mA |
Max Output Voltage: |
280V |
Output Voltage Range: |
70-280V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
9.47" L x 2.4" W x 1.5" H |
UL Class: |
Class 2 |
Features: |
Field-programmable NFC via APP, Damp/Wet Location Rated |
Alternative Keywords: |
180W UNV 1250mA DIM AUX12 IP65 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
