Description
LEDVANCE tapTronic Constant Current LED Driver, 50W Max Output Power, Universal High 120-347V Input, Programmable (NFC) Fixed Output Current of 140-1400mA (factory default 140mA), Output Voltage 8-55Vdc, 0-10V Analog Dimming 1%-100%, 12/24 AUX

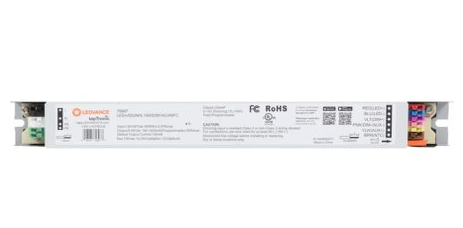

LEDVANCE tapTronic Programmable Constant Current LED Driver - 50W 1400mA Dimmable Aux
50W 120-347V tapTronic™ NFC Linear Constant Current LED Driver, 140- 1400mA programmable, DIM 0-10V w/ 1-100% range, AUX
- AC to DC Converter
- Max Power Output 50W
- Input Voltage: 120-347 VAC
- Output Voltage: 8-55V DC
- Fixed Output Current: 140-1400mA programmable, FACTORY DEFAULT 140mA
- NFC (Near Field Communication) Field-Programmable Via Mobile App
- Class 2
- Dry and Damp Location Rated
- 0-10V Analog Dimming 1%-100%
- Auxiliary Port 12/24Vdc
- NAED 75897
Spec SheetsAdditional Information
Our Part No.: |
BSF-LEDVC-75897 |
Manufacturer Part No.: |
LEDrv50UNHL1400DIM1AUXNFC LEDVANCE |
Manufacturer Material Code: |
75897 |
Brand: |
LEDVANCE tapTronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-347V (High Universal) |
Max Output Power: |
50W |
Max Output Current: |
1400mA |
Output Current Factory Setting: |
140mA |
Output Current Programmable Range: |
140-1400mA |
Output Current Common Custom Settings: |
500mA, 700mA, 900mA, 1050mA, 1400mA |
Max Output Voltage: |
55V |
Output Voltage Range: |
8-55V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
11.00" L x 1.18" W x 0.83" H |
UL Class: |
Class 2 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
Alternative Keywords: |
50W UNH 1400mA DIM1 AUX |
