Description
LEDVANCE tapTronic Constant Current LED Driver, 88W Max Output Power, Universal 120-277V Input, Programmable (NFC) Fixed Output Current of 240-2400mA (factory default 1400mA), Output Voltage 20-48Vdc, 0-10V Analog Dimming 1%-100%, 12V Auxiliary

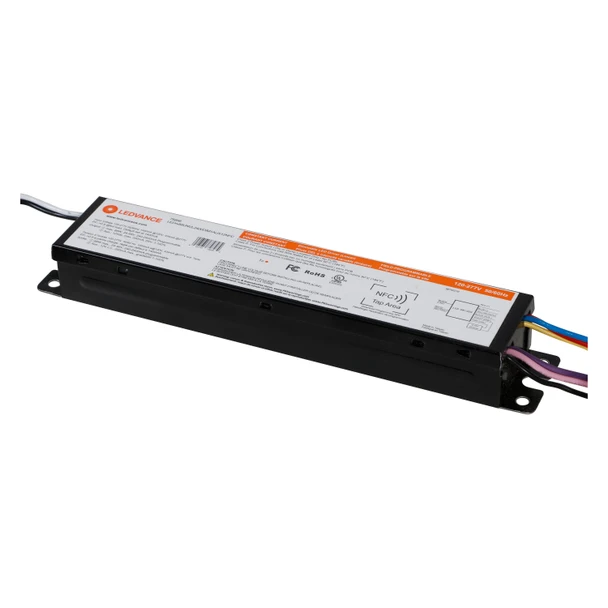

LEDVANCE tapTronic Programmable Constant Current LED Driver - 88W 1400mA Dimmable Aux
88W 120-277V tapTronic™ NFC Linear Constant Current LED Driver, 240-2400mA programmable, DIM 0-10V 1-100% range, AUX
- AC to DC Converter
- Max Power Output 88W
- Input Voltage: 120-277VAC
- Output Voltage: 20-48VDC
- Fixed Output Current: 240-2400mA programmable, FACTORY DEFAULT 1400mA
- NFC (Near Field Communication) Field-Programmable Via Mobile App:
- Output Current, Dim %
- Class 2
- IP20, Dry and Damp Location Rated
- 0-10V Analog Dimming 1%-100%
- Programmable Auxiliary Port: 12Vdc
- NAED 75858
Spec SheetsAdditional Information
Our Part No.: |
BSF-LEDVC-75858 |
Manufacturer Part No.: |
LEDrv88UNVL2400DIM1AUX12NFC |
Manufacturer Material Code: |
75858 |
Brand: |
LEDVANCE tapTronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
88W |
Max Output Current: |
2400mA |
Output Current Factory Setting: |
1400mA |
Output Current Programmable Range: |
240-2400mA |
Output Current Common Custom Settings: |
250mA, 500mA, 700mA, 900mA, 1000mA, 1250mA, 1400mA, 1750mA, 2000mA |
Max Output Voltage: |
48V |
Output Voltage Range: |
20-48V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
9.5" L x 1.75" W x 1.18" H |
UL Class: |
Class 2 |
Features: |
Field-programmable NFC via APP |
Alternative Keywords: |
88W UNV 2400mA DIM1 AUX12 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
