Description
LEDVANCE tapTronic Constant Current LED Driver, 55W Max Output Power, Universal 120-277V Input, Programmable (NFC) Fixed Output Current of 130-1300mA (factory default 700mA), Output Voltage 20-48Vdc, 0-10V Analog Dimming 1%-100%, 12V Auxiliary

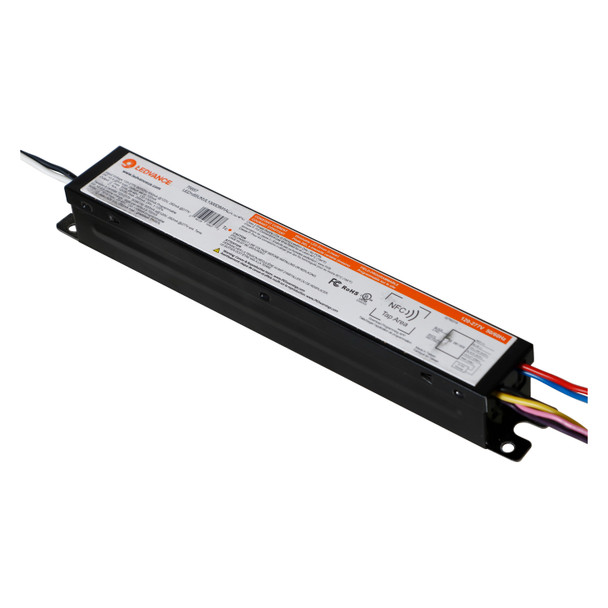

LEDVANCE tapTronic Programmable Constant Current LED Driver - 55W 700mA Dimmable Aux
55W 120-277V tapTronic™ NFC Linear Constant Current LED Driver, 130-1300mA programmable, DIM 0-10V 1-100% range, AUX
- AC to DC Converter
- Max Power Output 55W
- Input Voltage: 120-277VAC
- Output Voltage: 20-48VDC
- Fixed Output Current: 130-1300mA programmable, FACTORY DEFAULT 700mA
- NFC (Near Field Communication) Field-Programmable Via Mobile App:
- Output Current, Dim %
- Class 2
- IP20, Dry and Damp Location Rated
- 0-10V Analog Dimming 1%-100%
- Programmable Auxiliary Port: 12Vdc
- NAED 75857
Spec SheetsAdditional Information
Our Part No.: |
BSF-LEDVC-75857 |
Manufacturer Part No.: |
LEDrv55UNVL1300DIM1AUX12NFC |
Manufacturer Material Code: |
75857 |
Brand: |
LEDVANCE tapTronic |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Programmable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
55W |
Max Output Current: |
1300mA |
Output Current Factory Setting: |
700mA |
Output Current Programmable Range: |
130-1300mA |
Output Current Common Custom Settings: |
250mA, 500mA, 700mA, 900mA, 1000mA, 1250mA |
Max Output Voltage: |
48V |
Output Voltage Range: |
20-48V |
Dimming: |
Analog (0-10V) |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
9.5" L x 1.23" W x 1.1" H |
UL Class: |
Class 2 |
Features: |
Field-programmable NFC via APP |
Alternative Keywords: |
55W UNV 1300mA DIM1 AUX12 |
Warranty: |
Manufacturer's |
Case Size: |
10 |
