Description
Acuity nLight nPP16 D ER EFP Emergency Relay (ER) External Fault Protection (EFP), Input 120/277V, Switch up to 16A Load, two RJ-45 Connectors, 1/2" Knock-out Mounting, 0-10V Dimming via Chase Nipple, Auto-On default mode

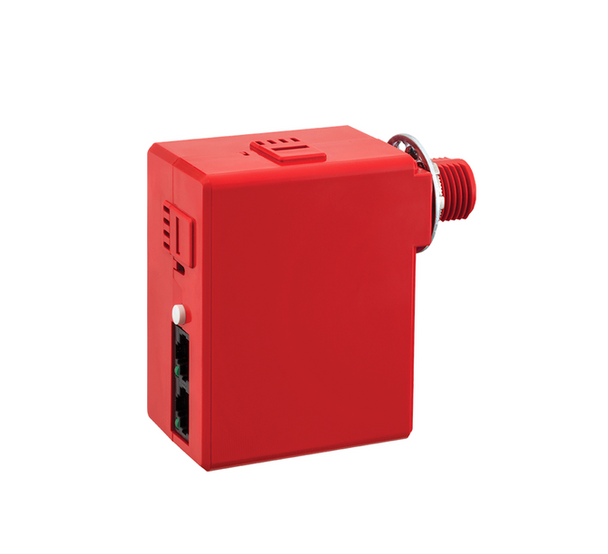

Acuity Controls nLight nPP16 D ER EFP Emergency Relay Pack - 0-10V Dimming Auto-On
The nLight nPP16 ER EFP series emergency relay pack is designed for use with a standard nPP16 EFP power and bypass relay packs that controls a zone's normal powered lighting.
Features
- Automatically Overrides Emergency Lights On To Full Brightness Upon Normal Power Loss
- Communicates with nLight Network
- 2 x RJ-45 connectors
- Self-Contained Relay Switches Line Voltage Load
- Remotely Configurable/Up-gradeable
- Test/programming button, Green LED Indicator
- Size: (not incl. 1/2” chase nipple) 3.38” H x 2.53” W x 1.83” D
- Mounting 1/2” Knockout (7/8" hole)
- Input 120/277V
- Extended Chase Nipple
- Plenum Rated (UL 2043)
- Color White
- Includes fuse integrated to relay wire lead for protection from load faults
- 0-10V Dimming via Chase Nipple
Product Options
Click here for full line up of nPP16 ER EFP Emergency Relay Packs and nPP16 EFP Power and Bypass Relay Packs
Spec SheetsAdditional Information
Our Part No: |
BSF-NL-265LYK |
Mfr Part #: |
NPP16 D ER EFP |
Manufacturer Material Code: |
*265LYK |
Brand: |
Acuity nLight |
Fixture Type: |
Fluorescent, LED |
Lighting Load Max: |
16A |
Input Voltage: |
120/277V |
Dimensions: |
3.38” H x 2.53” W x 1.83” D with a 0.50” threaded nipple |
Features: |
Non-Dimming |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
ea |
Alternative Keywords: |
0-10V Dimming via Chase Nipple, Auto-On |
