Description
Acuity nLight nPP16 D ER EFP SA Emergency Relay (ER) External Fault Protection (EFP), Input 120/277V, Switch up to 16A Load, two RJ-45 Connectors, 1/2" Knock-out Mounting, Dimming via Chase Nipple, (SA) Vacancy (default) or Auto-On

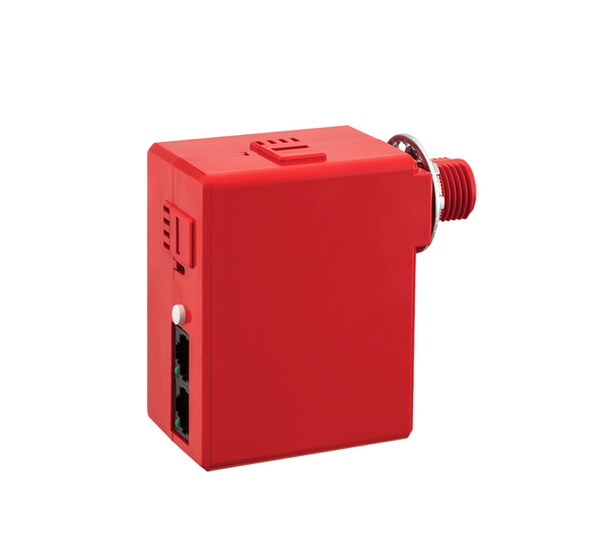

Acuity Controls nLight nPP16 D ER EFP SA Emergency Relay Pack - Vacancy (default) or Auto-On
The nLight nPP16 ER EFP series emergency relay pack is designed for use with a standard nPP16 EFP power and bypass relay packs that controls a zone's normal powered lighting.
Features
- Automatically Overrides Emergency Lights On To Full Brightness Upon Normal Power Loss
- Communicates with nLight Network
- 2 x RJ-45 connectors
- Self-Contained Relay Switches Line Voltage Load
- Remotely Configurable/Up-gradeable
- Test/programming button, Green LED Indicator
- Size: (not incl. 1/2” chase nipple) 3.38” H x 2.53” W x 1.83” D
- Mounting 1/2” Knockout (7/8" hole)
- Input 120/277V
- Extended Chase Nipple
- Plenum Rated (UL 2043)
- Color White
- Includes fuse integrated to relay wire lead for protection from load faults
- (SA) Vacancy (default) or Auto-On
Product Options
Click here for full line up of nPP16 ER EFP Emergency Relay Packs and nPP16 EFP Power and Bypass Relay Packs
Spec SheetsAdditional Information
Our Part No: |
BSF-NL-265M04 |
Mfr Part #: |
NPP16 D ER EFP SA |
Manufacturer Material Code: |
*265M04 |
Brand: |
Acuity nLight |
Fixture Type: |
Fluorescent, LED |
Lighting Load Max: |
16A |
Input Voltage: |
120/277V |
Dimensions: |
3.38” H x 2.53” W x 1.83” D with a 0.50” threaded nipple |
Features: |
Vacancy (default) or Auto-On |
Product Data Sheet: |
See PDF Link Provided |
Warranty: |
Manufacturer's |
Case Size: |
ea |
Alternative Keywords: |
nPP16-D-ER-EFP-SA |
