Description
Mean Well Constant Current LED Driver, 25W Max Power, Universal 120-277V Input, Field Adjustable Fixed Output Current (via built-in potentiometer) 250-1050mA (700mA default), 22-54Vdc Output

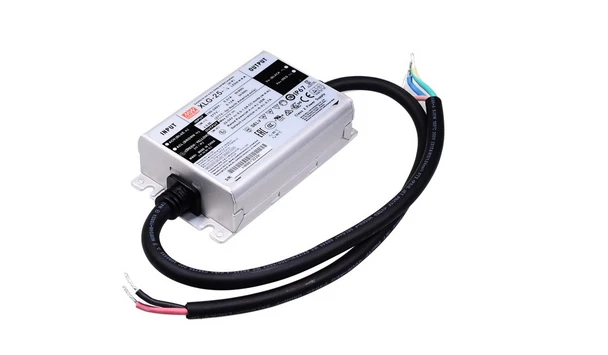

Mean Well Constant Current 25W 700mA LED Power Supply - Built-in Potentiometer
Built-in Potentiometer to field adjust fixed output current
Features
- 25W Max Power
- Field Adjustable 250-1050mA (default 700mA) Constant Output Current
- 22-54VDC Output Voltage
- Fully isolated plastic case
- IP67 Rated
- Type HL for use in Class 1, Division 2 hazardous location
- Class 2 power unit
Spec Sheets
Additional Information
Our Part No.: |
BSF-MW-XLG-25-A |
Manufacturer Part No.: |
XLG-25-A |
Brand: |
Mean Well |
Fixture Type: |
LED |
Driver Type: |
Constant-Current-Adjustable |
Input Voltage: |
120-277V (Universal) |
Max Output Power: |
25W |
Output Current Factory Setting: |
700mA |
Max Output Current: |
1050mA |
Output Current Adjustable Range: |
250-1050mA |
Max Output Voltage: |
54V |
Dimming: |
Non Dimming, Potentiometer |
Product Data Sheet: |
See PDF Link Provided |
Location Rating: |
Dry/Damp |
Dimensions: |
4.13" (L) x 2.48" (W) x 1.18" (H) |
UL Class: |
Class 2, HL |
Warranty: |
Manufacturer's |
Case Size: |
10 |
